Bare Copper PVC Electrical Cable Compound Class 2

Certification
Good quality Medium Voltage Cable for sales
Good quality Medium Voltage Cable for sales
I'm Online Chat Now

Bare Copper PVC Electrical Cable Compound Class 2

China Bare Copper PVC Electrical Cable Compound Class 2 supplier

Large Image :  Bare Copper PVC Electrical Cable Compound Class 2

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: CCC,ISO9001
Model Number: H07V-R

Payment & Shipping Terms:

Minimum Order Quantity: 100 Rolls
Price: Negotiable
Packaging Details: 100 Meters per Roll
Supply Ability: 10000 Rolls per Week
Contact Now
Detailed Product Description
Voltage Rating (Uo/U): 450/750V Temperature Rating: 5°C To +70°C
Minimum Bending Radius: 4 X Overall Diameter Conductor: Class 5 Flexible Copper Conductor
Insulation: PVC (Polyvinyl Chloride) Test Voltage:: 2500 V

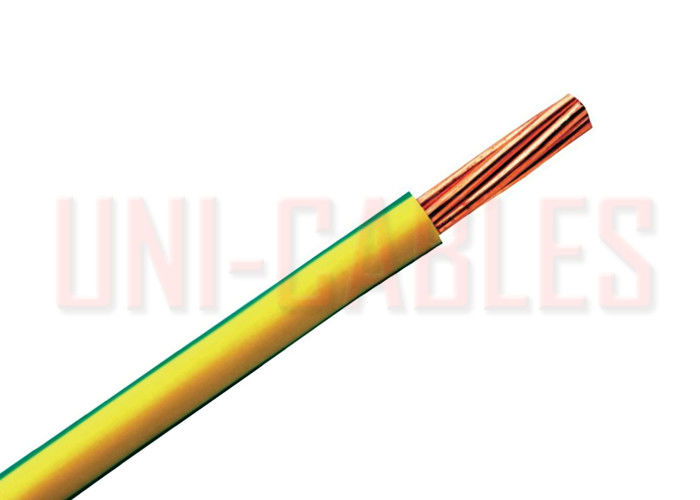

H07V-R PVC Electrical Cable 450/750V Copper Class 2 Stranded Conductor Wire



Application

For fixed installation in lighting networks, power systems, signal systems, for wiring in control boards, machines and instruments.



Standards

HRN HD 21.3 S3
IEC 60227-3
DIN VDE 0281 part 3



Construction

Conductor:bare copper conductor of class 1 (solid) acc, to IEC 60228 / HD 383 / DIN VDE 0295

Insulation:PVC compound TI1 acc. to IEC 60227-3 / HD 21.3 S3 / DIN VDE 00281 part 3

Possible insulation colours:

crna.jpg pro_bo.jpg plava.jpg crna.jpg



Technical data

Temperature range:

During installation:    +5 °C up to+70 °C

Fixed installed:          -30 °C up to+70 °C

At short circuit of max. 5 s.:up to 160 °C

Ambient temperature at storage:up to 40 °C

Nominal voltage:   Uο/U = 450/750 V

Test voltage:          2500 V

Minimal inner bending radius:

4D for D < 8 mm
5D for 8 - 12mm
6D for D > 12 mm

Behaviour in fire:   IEC 60332-1







Dimensions – conductor cross-section Construction of individual conductor External diameter Insulation thickness Conductor resistance at 20 °C Resistance of insulation at 70°C Cu weight Cable weight Packing*
  nominal min-max. nominal max. min.   approx.
mm² n x mm mm mm Ω/km MΩkm kg/km kg/km
10 7 x 1,35 5,6 - 06,7 1,0 1,83 0,0067 96 120 c.100
16 7 x 1,70 6,4 - 07,8 1,0 1,150 0,0056 153,6 175 c.100
25 7 x 2,13 8,1 - 09,7 1,2 0,727 0,0053 240 275 c.50, CUT
35 7 x 2,52 9,0 - 10,9 1,2 0,524 0,0046 336 370 c.50, CUT
50 19 x 1,83 10,6 - 12,8 1,4 0,387 0,0046 480 500 CUT
70 19 x 2,17 12,1 - 14,6 1,4 0,268 0,0040 672 710 CUT
95 19 x 2,52 14,1 - 17,1 1,6 0,193 0,0039 912 970 CUT
120 37 x 2,03 15,6 - 18,8 1,6 0,153 0,0035 1152 1200 CUT
150 37 x 2,27 17,3 - 20,9 1,8 0,124 0,0035 1440 1470 CUT

*) Packing: c.50 = coil 50 m, c.100 = coil 100 m, CUT = cable in different lengths on drum or reel, possible cutting at required length
