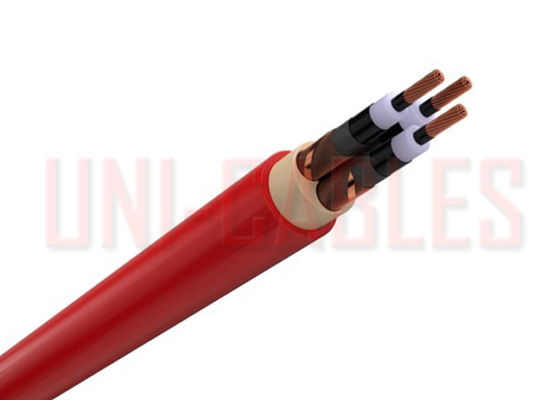

N2XSEY XLPE PVC Medium Voltage Cable 6/10 (12)kV 3 Core Power Distribution Cable
APPLICATION
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection.
To be laid directly in ground, outdoors, indoors and in cable ducts e.g. in industrial and switchboard plants.
CONSTRUCTION
circular stranded copper or aluminium conductor - conductor screeen of semiconducting compound - insulation of cross-linked polyethylen (XLPE) - screen of semiconducting compound plus copper wires and copper tape applied over each individual core - separation tape - PVC sheath
International : IEC 60502-2
National : DIN VDE 0276 part 620
Voltage Rating (Uo/U)(Um):6/10 (12)kV
Test Voltage:21kV
Temperature Rating:Fixed: -20°C to +70°C
Flexed: -5°C to +70°C
Short Circuit Temperature:+250°C
Minimum bending Radius:15 x overall diameter
Sheath Colour:Red
Conductor
Stranded copper conductor
Inner Layer
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene)
Outer Layer
Semi-conductive material and tape
Screen
Copper wires
Sheath
PVC (Polyvinyl Chloride)
DIMENSIONS
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | CURRENT CARRYING CAPACITY | ||
Conductor mm² | Copper Wire Screen mm² | In Ground Amps | In Air Amps | |||
3 | 35 | RM/16 | 49 | 2600 | 213 | 213 |
3 | 50 | RM/16 | 51 | 2900 | 220 | 236 |
3 | 70 | RM/16 | 55 | 3350 | 261 | 265 |
3 | 95 | RM/16 | 58 | 4200 | 312 | 322 |
3 | 120 | RM/16 | 62 | 5050 | 355 | 370 |
3 | 150 | RM/25 | 66 | 6000 | 399 | 420 |
3 | 185 | RM/25 | 69 | 7200 | 451 | 481 |
3 | 240 | RM/25 | 75 | 9000 | 523 | 566 |
