VDE0282 2Core 0.6mm Copper Conductor Cable , H05RR - F Rubber Flexible Cable

China VDE0282 2Core 0.6mm Copper Conductor Cable , H05RR - F Rubber Flexible Cable supplier

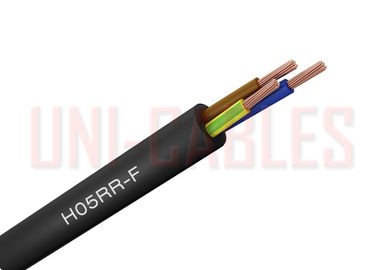

Large Image :  VDE0282 2Core 0.6mm Copper Conductor Cable , H05RR - F Rubber Flexible Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: H05RR-F

Payment & Shipping Terms:

Minimum Order Quantity: 100 Rolls
Price: Negotiable
Packaging Details: 100 Meters per Roll
Delivery Time: 15-20 Working days
Supply Ability: 6000 Meters per Week
Contact Now
Detailed Product Description
Conductor: Class 5 Flexible Copper Conductor Insulation: Rubber Compound
Sheath: Rubber Compound Voltage Rating (Uo/U): 300/500V
Temperature Rating: Flexed: -25°C To +60°C Minimum Bending Radius: Fixed: 3 X Overall Diameter

H05RR-F / 318-TRS Rubber Flexible Cable According to VDE0282 / BS 6500



APPLICATION
Ordinary duty flexible rubber cords suitable for use in domestic premises, such as kitchens and offices for supplying portable appliance.



Conductors: Annealed flexible copper

Insulation: EPR (Ethylene propylene rubber) or VIR (Vulcanised insulated rubber) more commonly known as VRI

Core identification:

2 core: Blue & brown
3 core: Blue, brown & green/yellow
4 core: Black, brown, grey & green/yellow
5 core: Black, blue, brown, grey & green/yellow

Sheath/Jacket: TRS (Tough rubber sheath)

Colour: Black

Voltage: 300/500v

Operating temperature: Maximum 70°C, minimum bending -30°C

Minimum bending radius: 6 x overall diameter

Standards: BS6500: flexible electric cables for use with appliances and equipment intended for domestic, office and similar environments
BS7919: flexible electric cables for use with appliances and equipment intended for industrial and similar environments





DIMENSIONS

UNI-CABLES
PART NO.
NO. OF CORES NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    mm² mm mm kg/km
UNI318TRS020075 2 0.75 0.6 6.1 53
UNI318TRS02010 2 1 0.6 6.6 64
UNI318TRS02015 2 1.5 0.8 7.8 95
UNI318TRS02025 2 2.5 0.9 9.2 140
UNI318TRS02040 2 4 1 10.8 180
UNI318TRS030075 3 0.75 0.6 6.6 65
UNI318TRS03010 3 1 0.6 7 77
UNI318TRS03015 3 1.5 0.8 8.4 115
UNI318TRS03025 3 2.5 0.9 9.9 170
UNI318TRS03040 3 4 1 11.7 240
UNI318TRS03060 3 6 1 13.3 320
UNI318TRS040075 4 0.75 0.6 7.3 80
UNI318TRS04010 4 1 0.6 7.6 95
UNI318TRS04015 4 1.5 0.8 9.4 145
UNI318TRS04025 4 2.5 0.9 11.1 210
UNI318TRS04040 4 4 1 13.0 300
UNI318TRS04060 4 6 1 14.5 405
UNI318TRS050075 5 0.75 0.6 8.1 100
UNI318TRS05010 5 1 0.6 8.4 115
UNI318TRS05015 5 1.5 0.8 10.3 170
UNI318TRS05025 5 2.5 0.9 12.4 255
UNI318TRS05040 5 4 1 14.5 355





Colour Codes

COLOUR Black White
CODE BK WH





CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS
SECTIONAL AREA
mm²
MAXIMUM DIAMETER OF WIRES IN CONDUCTOR
mm
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Plain Wires
ohms/km
0.75 0.21 26
1 19.5
1.5 0.26 13.3
2.5 7.98
4 0.31 4.95
6 3.3
