LSZH IEC 60754 CY Shielded Flexible Control Cable Halogen Free 300 500V
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Voltage Rating (Uo/U): | 300/500V | Temperature Rating: | Operating: -30°C To +70°C |
|---|---|---|---|
| Minimum Bending Radius: | Fixed: 6 X Overall Diameter | Core Identification: | Number Coded Cores |
| Sheath Colour: | Grey | Conductor: | Class 5 Flexible Copper Conductor |
| Insulation: | Halogen Free | Screen: | TCWB (Tinned Copper Wire Braid) |
| Sheath: | LSZH (Low Smoke Zero Halogen) |

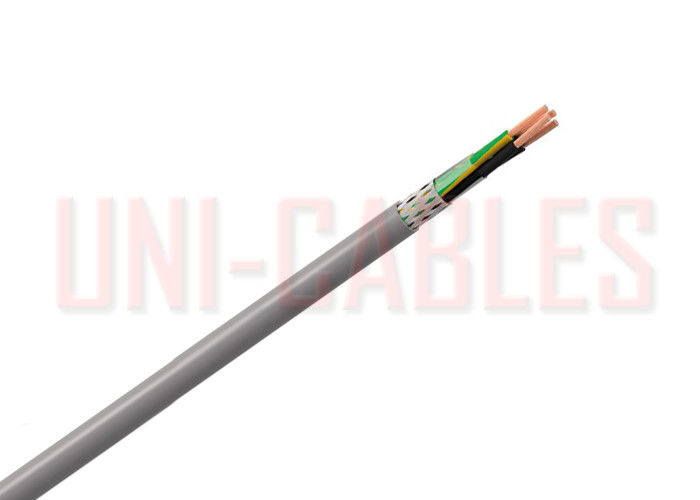

IEC Standard 60754 Control Cable Type CY LSZH Control Flexible Cable
APPLICATION
For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use when temporarily moved, and in conditions of medium mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or damp conditions indoors.
CY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.
CABLE STANDARDS
BS EN/IEC 60754-1, BS EN/IEC 60332-1-2
DIMENSIONS
| UNI-Cables PART NO. |
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| UNI02005CYLSZH | 2 | 0.5 | 5.7 | 35 |
| UNI020075CYLSZH | 2 | 0.75 | 6.1 | 45 |
| UNI02010CYLSZH | 2 | 1 | 6.3 | 57 |
| UNI02015CYLSZH | 2 | 1.5 | 7.3 | 75 |
| UNI02025CYLSZH | 2 | 2.5 | 8.7 | 107 |
| UNI03005CYLSZH | 3 | 0.5 | 6 | 53 |
| UNI030075CYLSZH | 3 | 0.75 | 6.4 | 63 |
| UNI03010CYLSZH | 3 | 1 | 6.6 | 73 |
| UNI03015CYLSZH | 3 | 1.5 | 7.7 | 95 |
| UNI03025CYLSZH | 3 | 2.5 | 9.2 | 140 |
| UNI04005CYLSZH | 4 | 0.5 | 6.4 | 62 |
| UNI040075CYLSZH | 4 | 0.75 | 6.9 | 89 |
| UNI04010CYLSZH | 4 | 1 | 7.1 | 86 |
| UNI04015CYLSZH | 4 | 1.5 | 8.4 | 118 |
| UNI04025CYLSZH | 4 | 2.5 | 10 | 172 |
| UNI05005CYLSZH | 5 | 0.5 | 6.9 | 73 |
| UNI050075CYLSZH | 5 | 0.75 | 7.5 | 89 |
| UNI05010CYLSZH | 5 | 1 | 7.7 | 102 |
| UNI05015CYLSZH | 5 | 1.5 | 9.1 | 141 |
| UNI07005CYLSZH | 7 | 0.5 | 7.5 | 92 |
| UNI070075CYLSZH | 7 | 0.75 | 8.2 | 115 |
| UNI07010CYLSZH | 7 | 1 | 8.4 | 139 |
| UNI07015CYLSZH | 7 | 1.5 | 10 | 181 |
CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables
| NOMINAL CROSS SECTIONAL AREA mm² |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C ohms/km |
| 0.5 | 39 |
| 0.75 | 26 |
| 1 | 19.5 |
| 1.5 | 13.3 |
| 2.5 | 7.98 |
The above table is in accordance with BS EN 60228 (previously BS 6360)
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity at 30ºC
| NOMINAL CROSS SECTIONAL AREA mm² |
CURRENT RATING Amps |
| 0.5 | 9 |
| 0.75 | 12 |
| 1 | 15 |
| 1.5 | 18 |
| 2.5 | 26 |
The above table is a guide extracted from DIN VDE 0298 Part 4 and DIN 0100 Part 430
DE-RATING FACTORS
| NO. OF CORES | 5 | 7 | 10 | 14 | 19 | 24 | 44 | 48 |
| DE-RATING FACTOR | 0.72 | 0.63 | 0.56 | 0.51 | 0.45 | 0.42 | 0.34 | 0.33 |
