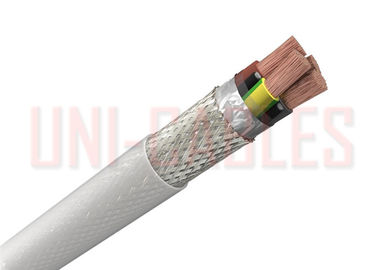

3 + 3 Earth 10.2mm Oil Resistant Cable Class 5 PVC VFD EMC 2YSLCY

: Large Image : 3 + 3 Earth 10.2mm Oil Resistant Cable Class 5 PVC VFD EMC 2YSLCY

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001
Model Number:	2YSLCY

Payment & Shipping Terms:

Minimum Order Quantity:	2000 Meters
Price:	Depends on Quantity
Packaging Details:	100 meters per roll, or 1000 meters per reel
Delivery Time:	10 working days
Supply Ability:	10000 per Week

Contact Now

Detailed Product Description

Voltage Rating:	600/1000V	Test Voltage:	4kV
Temperature Rating:	Fixed: -30°C To +70°C Flexed: -5°C To +70°C	Minimum Bending Radius:	Fixed: 10 X Overall Diameter Flexed: 25 X Overall Diameter
Conductor:	Class 5 Flexible Copper Conductor	Insulation:	PE (Polyethylene)
Screen:	AL-Foil (Aluminium-Foil)	Braiding:	TCWB (Tinned Copper Wire Braid)
Sheath:	PVC (Polyvinyl Chloride)

VDE 0482-332-1-2 Standard Flexible Control Cable VFD EMC 2YSLCY Cable

3 + 3 Earth 10.2mm Oil Resistant Cable Class 5 PVC VFD EMC 2YSLCY

APPLICATION

The cable has been developed for connecting motors to inverse rectifiers under consideration of EMC (electromagnetic compatibility) requirements. It may be used under medium mechanical stress for fixed installations and temporary movement. This cable offers a good resistance against oil and grease. Suitable for outdoor installation but not direct burial.

CABLE STANDARDS

VDE 0482-332-1-2, BS EN/IEC 60332-1, BS EN/IEC 60811-2,

BS EN 60228

DIMENSIONS

UNI-Cables PART NO.	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
UNI-Cables PART NO.	NO. OF CORES	Power Conductor	Earth Conductor	mm	kg/km
UNIVFD03015	3 + 3 earth	1.5	0.25	10.2	140
UNIVFD03025	3 + 3 earth	2.5	0.5	11.4	220
UNIVFD03040	3 + 3 earth	4	0.75	13.1	323
UNIVFD03060	3 + 3 earth	6	1	14.9	420
UNIVFD0310	3 + 3 earth	10	1.5	18.4	615
UNIVFD0316	3 + 3 earth	16	2.5	21.6	819
UNIVFD0325	3 + 3 earth	25	4	25.3	1402
UNIVFD0335	3 + 3 earth	35	6	27.8	1718
UNIVFD0350	3 + 3 earth	50	10	32.6	2399
UNIVFD0370	3 + 3 earth	70	10	38.9	3173
UNIVFD0395	3 + 3 earth	95	16	44.3	4162
UNIVFD03120	3 + 3 earth	120	16	46.8	5253
UNIVFD03150	3 + 3 earth	150	25	53.5	6128
UNIVFD03185	3 + 3 earth	185	35	59.5	7450
UNIVFD03240	3 + 3 earth	240	50	70	10800
UNIVFD04015	4	1.5	-	10.4	154
UNIVFD04025	4	2.5	-	12.3	229
UNIVFD04040	4	4	-	14.5	339
UNIVFD04060	4	6	-	16.8	451
UNIVFD0410	4	10	-	19.7	667
UNIVFD0416	4	16	-	22	892
UNIVFD0425	4	25	-	27	1440
UNIVFD0435	4	35	-	30.3	1861
UNIVFD0450	4	50	-	35	2547
UNIVFD0470	4	70	-	39.4	3404
UNIVFD0495	4	95	-	46	4888
UNIVFD04120	4	120	-	51.4	5703
UNIVFD04150	4	150	-	58.8	7040
UNIVFD04185	4	185	-	61.1	9150
UNIVFD04240	4	240	-	70	12500

CONDUCTORS

NOMINAL CROSS SECTIONAL AREA	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR	MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C
mm²	mm	ohms/km
1.5	0.26	13.3
2.5	0.26	7.98
4	0.31	4.95
6	0.31	3.3
10	0.41	1.91
16	0.41	7.98
25	0.41	4.95
35	0.41	0.554
50	0.41	0.386
70	0.51	0.272
95	0.51	0.206
120	0.51	0.161
150	0.51	0.129
185	0.51	0.106
240	0.51	0.0801
300	0.51	0.0641
