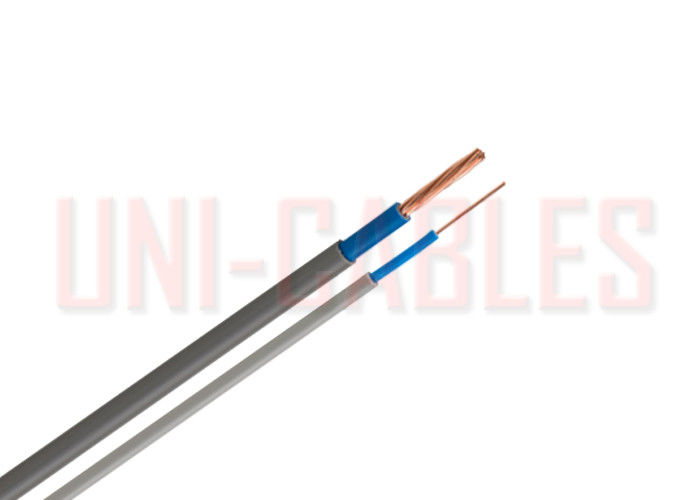

Insulated Sheathed BS 6004 PVC Electrical Cable Industrial Polyvinyl Chloride 6181Y
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Voltage Rating (Uo/U): | 300/500V | Temperature Rating: | Fixed: -15°C To +70°C |
|---|---|---|---|
| Minimum Bending Radius: | 6 X Overall Diameter | Insulation Colour: | Blue Brown |
| Sheath Colour: | Grey | Conductor: | 4mm² To 25mm²: Class 2 Stranded Copper Conductor |
| Insulation: | PVC (Polyvinyl Chloride) | Sheath: | PVC (Polyvinyl Chloride) |
BS 6004 Cable Fixed Wiring Cable Type 6181Y PVC Insulated and Sheathed Cable
APPLICATION
Fixed installation in dry or damp areas for domestic and light industrial wiring. Also used in connection to (smart)meters.
BS EN 50525-3-41 (previously BS 7211)
DIMENSIONS
| NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL DIAMETER OF CONDUCTOR mm |
NOMINAL THICKNESS OF INSULATION mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
|||||||||||||||||||||||||||||||||||||||
| 1 | 1.13 | 0.6 | 4.1 | 28 | |||||||||||||||||||||||||||||||||||||||
| 1.5 | 1.38 | 0.7 | 4.6 | 34 | |||||||||||||||||||||||||||||||||||||||
| 2.5 | 1.76 | 0.8 | 5.3 | 49 | |||||||||||||||||||||||||||||||||||||||
| 4 | 2.5 | 0.8 | 6.1 | 75 | |||||||||||||||||||||||||||||||||||||||
| 6 | 3 | 0.8 | 6.7 | 99 | |||||||||||||||||||||||||||||||||||||||
| 10 | 3.85 | 1 | 8.1 | 155 | |||||||||||||||||||||||||||||||||||||||
| 16 | 4.8 | 1 | 9.3 | 225 | |||||||||||||||||||||||||||||||||||||||
| 25 | 5.9 | 1.2 | 11.1 | 340 | |||||||||||||||||||||||||||||||||||||||
Colour Codes
| COLOUR | Blue | Brown | |||||||||||||||||||||||||||||||||||||||||||||||
| CODE | BL | BR | |||||||||||||||||||||||||||||||||||||||||||||||
CONDUCTORS
Class 1 Stranded Conductors for Single Core and Multi-Core Cables
| NOMINAL CROSS SECTIONAL AREA mm² |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC | ||||||||||||||||||||||||||||||||||||||||||||||||
| Circular, Annealed Copper Conductors | |||||||||||||||||||||||||||||||||||||||||||||||||
| Plain Wires ohms/km |
Metal-Coated Wires ohms/km |
||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 18.1 | 18.2 | |||||||||||||||||||||||||||||||||||||||||||||||
| 1.5 | 12.1 | 12.2 | |||||||||||||||||||||||||||||||||||||||||||||||
| 2.5 | 7.41 | 7.56 | |||||||||||||||||||||||||||||||||||||||||||||||
Class 2 Stranded Conductors for Single Core and Multi-Core Cables
| NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL CROSS SECTIONAL AREA mm² |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC | ||||||
| Circular | Circular Compacted | Shaped | Annealed Copper Conductor | |||||
| Cu | Al | Cu | Al | Cu | Al | Plain Wires ohms/km |
Metal-Coated Wires ohms/km |
|
| 4 | 7 | - | 6 | - | - | - | 4.61 | 4.7 |
| 6 | 7 | - | 6 | - | - | - | 3.08 | 3.11 |
| 10 | 7 | 7 | 6 | 6 | - | - | 1.83 | 1.84 |
| 16 | 7 | 7 | 6 | 6 | - | - | 1.15 | 1.16 |
| 25 | 7 | 7 | 6 | 6 | 6 | 6 | 0.727 | 0.734 |
