HAR Standard Outdoor Galvanized Steel Armoured Cable , Industrial Armoured Flexible Cable

China HAR Standard Outdoor Galvanized Steel Armoured Cable , Industrial Armoured Flexible Cable supplier

Large Image :  HAR Standard Outdoor Galvanized Steel Armoured Cable , Industrial Armoured Flexible Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: CCC,ISO9001
Model Number: H03VVH2-F

Payment & Shipping Terms:

Minimum Order Quantity: 200 Rolls
Price: Depends on Quantity
Packaging Details: 100 Meters per Roll
Supply Ability: 10000 Rolls per Week
Detailed Product Description
Voltage Rating (Uo/U): 300/300V Temperature Rating: 5°C To +70°C
Minimum Bending Radius: 8 X Overall Diameter Sheath Colour: White Black
Conductor: Class 5 Flexible Copper Conductor Insulation: PVC (Polyvinyl Chloride)
Sheath: PVC (Polyvinyl Chloride)

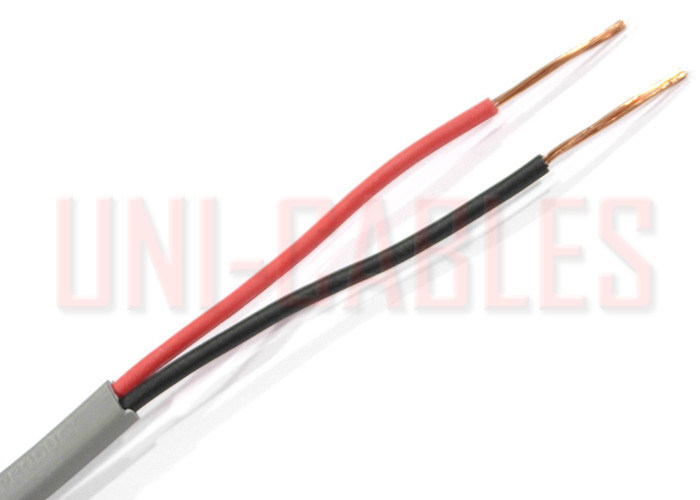

H03VVH2-F PVC Electrical Cable Twin Flat Flexible Cable for General Use

HAR Standard Outdoor Galvanized Steel Armoured Cable , Industrial Armoured Flexible Cable



APPLICATION

Manufactured in accordance with European harmonised code (HAR standard cables) H03VVH2-F, This range of PVC cable is suitable for use as a general supply lead, for pendant lighting drops and for light portable domestic appliances. However, it is not suitable for heating and cooking appliances.



CABLE STANDARDS

BS EN 50525-2-11 (previously BS 6500),
BS EN/IEC 60332-1-2



DIMENSIONS

NO. OF CORES NOMINAL CROSS SECTIONAL AREA
mm²
NOMINAL THICKNESS OF INSULATION
mm
NOMINAL THICKNESS OF SHEATH
mm
NOMINAL OVERALL DIAMETER
H x W mm
NOMINAL WEIGHT
kg/km
2 0.5 0.5 0.6 3.35 x 5 30
2 0.75 0.5 0.6 3.5 x 5.5 37





CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²
MAXIMUM DIAMETER OF WIRES IN CONDUCTOR
mm
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Plain Wires
ohms/km
Metal-Coated Wires
ohms/km
0.5 0.21 39 40.1
0.75 0.21 26 26.7



ELECTRICAL CHARACTERISTICS
Current Carrying Capacity and Mass Supportable

NOMINAL CROSS SECTIONAL AREA
mm²
CURRENT CARRYING CAPACITY MAXIMUM MASS SUPPORTABLE BY TWIN FLEXIBLE CORD
kg
Single-Phase AC
Amps
Three-Phase AC
Amps
0.5 3 3 2
0.75 6 6 3





Voltage Drop

NOMINAL CROSS SECTIONAL AREA
mm²
DC OR SINGLE-PHASE AC
mV/A/m
THREE-PHASE AC
mV/A/m
0.5 93 80
0.75 62 54





DE-RATING FACTORS

AIR TEMPERATURE 35ºC 40ºC 45ºC 50ºC 55ºC
DE-RATING FACTOR 0.91 0.82 0.71 0.58 0.41
