Copper Conductor YSLY Copper Flexible Cable , Type YSLY - JZ 2 . 5mm2 Multicore Control Cable

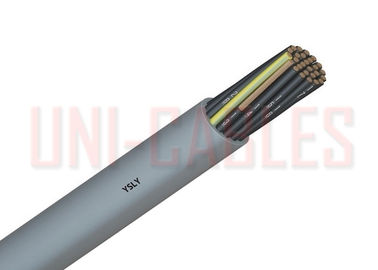

: Large Image : Copper Conductor YSLY Copper Flexible Cable , Type YSLY - JZ 2 . 5mm2 Multicore Control Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001
Model Number:	YSLY-JZ

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	Negotiable
Packaging Details:	100 meters per roll, or 1000 meters per reel
Supply Ability:	10000 per Week

Contact Now

Detailed Product Description

Voltage Rating:	300/500V	Temperature Rating:	Fixed: -40°C To +70°C Flexed: -5°C To +70°C
Minimum Bending Radius:	Fixed: 4 X Overall Diameter Flexed: 15 X Overall Diameter	Sheath Colour:	Grey
Conductor:	Class 5 Flexible Copper Conductor	Insulation:	PVC TI1
Sheath:	PVC TM2

YSLY Flexible Control Cable TypeYSLY-JZ Multi Core 2.5mm2 and Above Control Cable

APPLICATION

Universally applicable: Flexible power, process control and instrumentation cable for industrial applications and mechanical engineering for indoor applications. For installation in dry and damp rooms. The cable is resistant to most usual chemicals, oil and grease. Not suitable for constant motion.

Conductor material: bare copper

Conductor class: class 5 = fine stranded

Insulation: PVC TI1

Sheathing material: PVC TM2

Colour outer sheath: grey

Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2

Maximum permitted conductor temperature: 70 °C

Permitted outer cable temperature, fixed: -40 - +70 °C

Permitted outer cable temperature, in motion/ during installation: -5 - +70 °C

Bending radius, fixed installation: 4 x DA

Bending radius, moving application: 15 x DA

	YSLY-JZ	YSLY-OZ	YSLY-JB	YSLY-OB
Nominal voltage Uo:	300V	300V	300V	300V
Nominal voltage U:	500V	500V	500V	500V
Test voltage:	2kV	2kV	2kV	2kV
Protective conductor:	yes	no	yes	no
Core identification:	green-yellow + numbers	numbers	colours acc. to VDE 0293 (HD308)	colours acc. to VDE 0293 (HD308)

CABLE STANDARDS

VDE 0250, BS EN/IEC 60332-3, BS EN/ IEC 60754-1

DIMENSIONS

YSLY-JZ 03X2,5 GR	7.98	8.2	72	148
YSLY-JZ 04X2,5 GR	7.98	9.3	96	236
YSLY-JZ 05X2,5 GR	7.98	10.2	120	263
YSLY-JZ 07X2,5 GR	7.98	11.2	168	298
YSLY-JZ 08X2,5 GR	7.98	13.4	192	339
YSLY-JZ 12X2,5 GR	7.98	14.7	288	522
YSLY-JZ 14X2,5 GR	7.98	15.9	336	588
YSLY-JZ 16X2,5 GR	7.98	19.1	384	665
YSLY-JZ 18X2,5 GR	7.98	18.1	432	749
YSLY-JZ 19X2,5 GR	7.98	18.2	456	670
YSLY-JZ 20X2,5 GR	7.98	20.8	480	832
YSLY-JZ 21X2,5 GR	7.98	21.5	504	928
YSLY-JZ 25X2,5 GR	7.98	21.4	600	1024
YSLY-JZ 34X2,5 GR	7.98	24.6	816	1513
YSLY-JZ 40X2,5 GR	7.98	26.9	960	1660
YSLY-JZ 42X2,5 GR	7.98	27.1	1008	1800
YSLY-JZ 50X2,5 GR	7.98	29.9	1200	2200
YSLY-JZ 61X2,5 GR	7.98	34.4	1464	2553
YSLY-JZ 03X4 GR	4.95	9.8	1152	235
YSLY-JZ 04X4 GR	4.95	10.9	154	299
YSLY-JZ 05X4 GR	4.95	12.3	192	363
YSLY-JZ 07X4 GR	4.95	13.9	269	488
YSLY-JZ 12X4 GR	4.95	19.5	460.8	790
YSLY-JZ 03X6 GR	3.3	11.6	172.8	415
YSLY-JZ 04X6 GR	3.3	12.9	230	480
YSLY-JZ 05X6 GR	3.3	14.4	288	583
YSLY-JZ 07X6 GR	3.3	15.7	403	782
YSLY-JZ 19X6 GR	3.3	26.7	1094	1600
YSLY-JZ 03X10 GR	1.91	14.8	288	682
YSLY-JZ 04X10 GR	1.91	16.5	384	737
YSLY-JZ 05X10 GR	1.91	18.4	480	914
YSLY-JZ 07X10 GR	1.91	19.9	672	1191
YSLY-JZ 03X16 GR	1.91	16.9	461	827
YSLY-JZ 04X16 GR	1.21	19.6	614	1087
YSLY-JZ 05X16 GR	1.21	22	768	1370
YSLY-JZ 07X16 GR	1.21	23.9	1075	1779
YSLY-JZ 04X25 GR	0.78	23.8	960	1582
YSLY-JZ 05X25 GR	0.78	27.5	1200	1998
YSLY-JZ 07X25 GR	0.78	31.2	1680	2597
YSLY-JZ 04X35 GR	0.554	28.8	1344	2106
YSLY-JZ 05X35 GR	0.554	31.8	1680	2485
YSLY-JZ 07X35 GR	0.554	38.3	2352	2998
YSLY-JZ 03X50 GR	0.386	27.9	1440	2550
YSLY-JZ 04X50 GR	0.386	34.9	1920	2943
YSLY-JZ 05X50 GR	0.386	38.3	2400	3936
