Black Sheathed PVC Insulated Cables , YSLY-JZ 600V Flexible Signal Cable

China Black Sheathed PVC Insulated Cables , YSLY-JZ 600V Flexible Signal Cable supplier

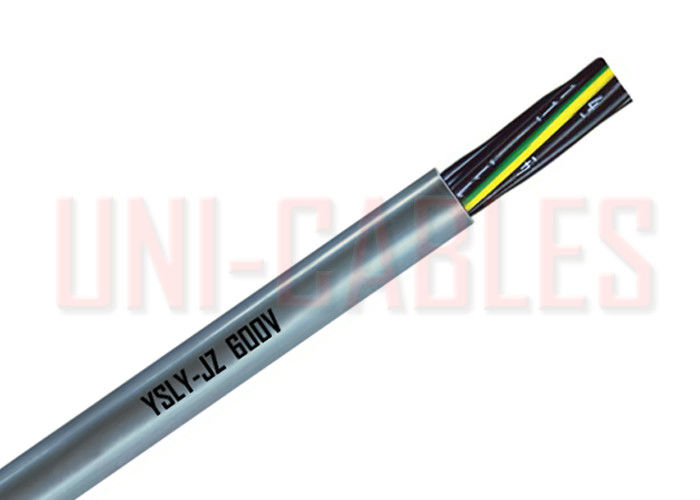

Large Image :  Black Sheathed PVC Insulated Cables , YSLY-JZ 600V Flexible Signal Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: CCC,ISO9001
Model Number: YSLY-JZ 600V

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: 100 meters per roll, or 1000 meters per reel
Supply Ability: 10000 per Week
Contact Now
Detailed Product Description
Voltage Rating: 600V Temperature Rating: Fixed: -40°C To +70°C Flexed: -5°C To +70°C
Minimum Bending Radius: Fixed: 4 X Overall Diameter Flexed: 15 X Overall Diameter Sheath Colour: Black
Conductor: Class 5 Flexible Copper Conductor Insulation: PVC TI1

YSLY-JZ 600V Flexible Control Cable Flexible Signal Cable, PVC Insulated and Sheathed





APPLICATION

Flexible power, process control and instrumentation cable for industry, machinery and outdoor environment. The cable is resistant to UV-irradiation, to most commonly used chemicals and to oil and grease. Not suitable for constant motion.





Conductor material: bare copper

Conductor class: class 5 = fine stranded

Insulation: PVC TI1

Sheathing material: Special PVC-compound

Colour outer sheath: Black

Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2

Oil-resistant:EN 60811-2-1

Maximum permitted conductor temperature: 70 °C

Permitted outer cable temperature, fixed: -40 - +70 °C

Permitted outer cable temperature, in motion/ during installation: -5 - +70 °C

Bending radius, fixed installation: 4 x DA

Bending radius, moving application: 15 x DA





  YSLY-JZ 600V YSLY-OZ 600V
Nominal voltage Uo: 600V 600V
Nominal voltage U: 1000V 1000V
Test voltage: 4kV 4kV
Protective conductor: yes yes
Core identification: green-yellow +
numbers
numbers



CABLE STANDARDS

VDE 0250, BS EN/IEC 60332-3, BS EN/ IEC 60754-1



DIMENSIONS



Name Conductor resistance
[Ω/km]
Outer diameter approx
[mm]
Copper weight
[kg/km]
weight
[kg/km]
YSLY-JZ 600 03X0,75 26 8.7 22 91
YSLY-JZ 600 04X0,75 26 9.2 29 120
YSLY-JZ 600 05X0,75 26 9.9 36 134
YSLY-JZ 600 07X0,75 26 11.1 50.4 177
YSLY-JZ 600 12X0,75 26 13.4 86.4 248
YSLY-JZ 600 18X0,75 26 15.6 130 350
YSLY-JZ 600 25X0,75 26 18.9 180 478
YSLY-JZ 600 34X0,75 26 21.5 245 626
YSLY-JZ 600 42X0,75 26 23.3 302.4 760
YSLY-JZ 600 50X0,75 26 25.6 360 871
YSLY-JZ 600 61X0,75 26 28.2 439.2 1060
YSLY-JZ 600 03X1 19.5 9 29 98
YSLY-JZ 600 04X1 19.5 9.6 38.4 110
YSLY-JZ 600 05X1 19.5 10.4 48 136
YSLY-JZ 600 07X1 19.5 12.1 67.2 179
YSLY-JZ 600 10X1 0,6/1 kV 19.5 14.1 96 268
YSLY-JZ 600 12X1 19.5 14.5 115.2 287
YSLY-JZ 600 18X1 19.5 17.3 173 408
YSLY-JZ 600 25X1 19.5 21.1 240 567
YSLY-JZ 600 34X1 19.5 24 326.4 751
YSLY-JZ 600 50X1 19.5 28.5 480 1076
YSLY-JZ 600 03X1,5 13.3 10.1 43.2 122
YSLY-JZ 600 04X1,5 13.3 10.8 58 150
YSLY-JZ 600 05X1,5 13.3 11.7 72 176
YSLY-JZ 600 07X1,5 13.3 13.5 101 192
YSLY-JZ 600 12X1,5 13.3 16.6 173 363
YSLY-JZ 600 18X1,5 13.3 19.7 259.2 520
YSLY-JZ 600 25X1,5 13.3 23.9 360 740
YSLY-JZ 600 61X1,5 13.3 36.8 878.4 1680
YSLY-JZ 600 03X2,5 7.98 11.3 72 176
YSLY-JZ 600 04X2,5 7.98 12.2 96 209
YSLY-JZ 600 05X2,5 7.98 13.3 120 252
YSLY-JZ 600 07X2,5 7.98 15.2 168 335
YSLY-JZ 600 12X2,5 7.98 18.7 288 544
YSLY-JZ 600 18X2,5 7.98 22 432 788
YSLY-JZ 600 25X2,5 7.98 26.9 600 1101
