Voltage Rating: | 300/500V | Temperature Rating: | Fixed: -30°C To +60°C Flexed: -20°C To +60°C |
---|---|---|---|
Minimum Bending Radius: | Fixed: 3 X Overall Diameter Flexed: 4 X Overall Diameter | Sheath Colour: | Black |
Conductor: | Class 5 Flexible Copper Conductor | Insulation: | PVC TI1 |

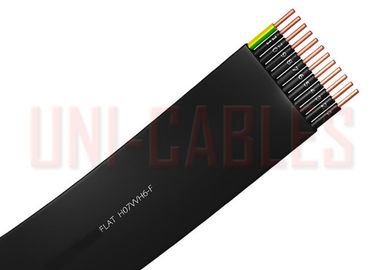

H05VVH6-F 300V PVC Insulated Flexible Flat Control Cable acc. To DIN EN 50214
APPLICATION
As connection and feeder cable for power supply, control and regulation at minimum mechanical loads in dry and damp areas. For the connection of mobile parts of machine tools, conveyor plants and major items of equipment, in particular, if the cable is exposed to strong and frequent bends in only one level.
Conductor material: bare copper
Conductor class: class 5 = fine stranded
Insulation: PVC TI1
Sheathing material: Special PVC-compound
Colour outer sheath: Black
Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2
Oil-resistant:EN 60811-2-1
Maximum permitted conductor temperature: 60 °C
Permitted outer cable temperature, fixed: -30 - +60 °C
Permitted outer cable temperature, in motion/ during installation: -20 - +60 °C
Bending radius, fixed installation: 3 x DA
Bending radius, moving application: 4 x DA
Size | NUMBER OF CORES |
SIZE OF CORE |
APPROX. DIMENSION HEIGHT X WIDTH |
APPROX. COPPER WEIGHT |
APPROX. CABLE WEIGHT |
(mm2) | (mm) | KG/KM | KG/KM | ||
H05VVH6F4G0.75 | 4 | 0.75 | 4.2 x 13.0 | 29 | 100 |
H05VVH6F8G0.75 | 8 | 0.75 | 4.2 x 25.5 | 58 | 190 |
H05VVH6F12G0.75 | 12 | 0.75 | 4.2 x 33.5 | 86 | 260 |
H05VVH6F16G0.75 | 16 | 0.75 | 4.2 x 45.0 | 102 | 350 |
H05VVH6F18G0.75 | 18 | 0.75 | 4.2 x 51.0 | 130 | 400 |
H05VVH6F20G0.75 | 20 | 0.75 | 4.2 x 54.5 | 144 | 430 |
H05VVH6F24G0.75 | 24 | 0.75 | 4.2 x 65.0 | 173 | 510 |
H05VVH6F4G1 | 4 | 1 | 4.4 x 13.5 | 38 | 115 |
H05VVH6F5G1 | 5 | 1 | 4.4 x 16.0 | 48 | 135 |
H05VVH6F8G1 | 8 | 1 | 4.4 x 26.5 | 77 | 220 |
H05VVH6F12G1 | 12 | 1 | 4.4 x 36.0 | 116 | 310 |
H05VVH6F18G1 | 18 | 1 | 4.4 x 55.0 | 173 | 470 |
H05VVH6F24G1 | 24 | 1 | 4.4 x 70.0 | 231 | 600 |
H05VVH6F3X4G1 | 3 x 4G | 1 | 8.1 x 19.5 | 115 | 300 |
H05VVH6F4X4G1 | 4 x 4G | 1 | 8.1 x 25.6 | 154 | 400 |
