Oil Resistant European Flexible Control Cable H05VV5 - F Number Coded

China Oil Resistant  European Flexible Control Cable H05VV5 - F Number Coded supplier

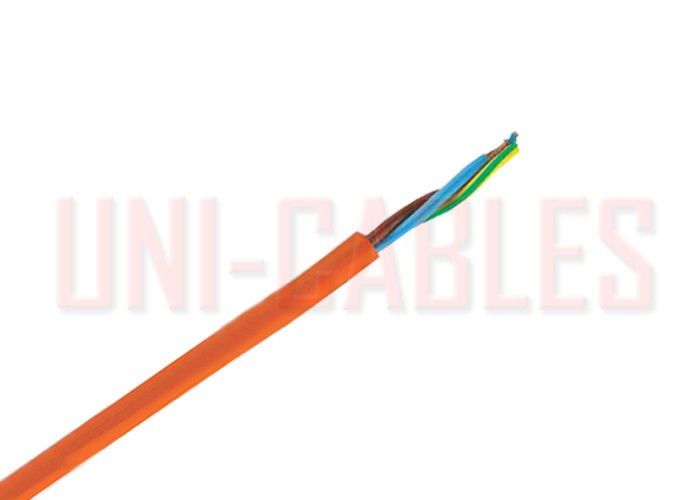

Large Image :  Oil Resistant European Flexible Control Cable H05VV5 - F Number Coded

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: CCC,ISO9001
Model Number: H05VV5-F

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: 100 meters per roll, or 1000 meters per reel
Supply Ability: 10000 per Week
Detailed Product Description
Voltage Rating: 300/500V Temperature Rating: Fixed: -40°C To +70°C Flexed: -7°C To +70°C
Minimum Bending Radius: Flexed: 7.5 X Overall Diameter Sheath Colour: Black
Conductor: Class 5 Flexible Copper Conductor Insulation: PVC TI2

H05VV5-F European Flexible Control Cable Oil Resistant and Number Coded



APPLICATION

These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but are not suitable for open air. These are designed as control and connecting cables to machines, tool machineries, conveyor belts and production lines.





Conductor material: bare copper

Conductor class: class 5 = fine stranded

Insulation: PVC TI2

Sheathing material: PVC TM5



H05VV5-F are not affected by the chemical influences. Cables for moist and wet rooms, specially used for machines in breweries, bottling plants and car washing stations.


H05VV5-F may be allowed to move once installed provided that the cables are not mechanically stressed during movement.





  •  Control cable, special PVC with oil resistant outer jacket to DIN VDE 0281 part 13, HD 21.13S1 and IEC 60227/75
  •  Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  •  Nominal Voltage U0/U 300/500 V
  •  Test Voltage 2000 V, 5 min.
  •  Breakdown Voltage min. 4000 V
  •  Insulation Resistance
    Min. 20 MOhm x km
  •  Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  •  Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)



Description & No. Conductors x cross-sec. mm2 Outer Diameter Copper Weight Weight AWG
mm kg/km ca. kg/km
HO5VV5-F-OZ 2X0.5 5.2-6.6 9.7 46 20
HO5VV5-F 3G0.5 5.5-7.0 14.4 54 20
HO5VV5-F 4G0.5 6.2-7.9 19 65 20
HO5VV5-F 5G0.5 6.8-8.6 24 80 20
HO5VV5-F 6G0.5 7.6-9.6 29 104 20
HO5VV5-F 7G0.5 8.3-10.4 33.6 119 20
HO5VV5-F 8G0.5 8.9-10.8 38 134 20
HO5VV5-F 9G0.5 9.7-12.1 43 136 20
HO5VV5-F 10G0.5 10.0-12.2 48 166 20
HO5VV5-F 12G0.5 10.4-12.9 58 186 20
HO5VV5-F 14G0.5 10.8-13.2 67 215 20
HO5VV5-F 18G0.5 12.3-15.3 86 251 20
HO5VV5-F 25G0.5 15.1-18.8 120 349 20
HO5VV5-F 27G0.5 15.1-18.6 129.6 373 20
HO5VV5-F 34G0.5 16.8-20.8 163 480 20
HO5VVF-F 36G0.5 17.0-20.9 172 510 20
HO5VV5-F 41G0.5 18.2-22.4 196 570 20
HO5VV5-F 50G0.5 20.3-25.3 240 658 20
HO5VV5-F 61G0.5 21.8-27.0 293 780 20
HO5VV5-F 65G0.5 24.3-29.8 312 810 20
HO5VV5-F-OZ 2X0.75 5.7-7.2 14.1 52 18
HO5VV5-F 3G0.75 6.0-7.6 21.6 68 18
HO5VV5-F 4G0.75 6.6-8.3 29 82 18
HO5VV5-F 5G0.75 7.4-9.3 36 107 18
HO5VV5-F 6G0.75 8.1--10.1 43 132 18
HO5VV5-F 7G0.75 9.0-11.3 50 145 18
HO5VV5-F 8G0.75 10.0-12.2 58 189 18
HO5VV5-F 9G0.75 10.7-13.4 65 194 18
HO5VV5-F 12G0.75 11.0-13.7 86 231 18
HO5VV5-F 14G0.75 11.9-14.6 101 274 18
HO5VV5-F 18G0.75 13.2-16.4 130 313 18
HO5VV5-F 25G0.75 16.0-19.9 180 461 18
HO5VV5-F 27G0.75 16.2-19.9 195 493 18
HO5VV5-F 34G0.75 18.0-22.3 245 614 18
HO5VV5-F 36G0.75 18.2-22.4 259 646 18
HO5VV5-F 41G0.75 19.7-24.1 295 730 18
HO5VV5-F 50G0.75 21.9-27.1 360 896 18
HO5VV5-F 61G0.75 24.3-30.2 439 1030 18
HO5VV5-F 65G0.75 25.8-31.7 468 1071 18
HO5VV5-F-OZ 2X1 5.9-7.8 19 66 17
HO5VV5-F 3G1 6.3-8.0 29 78 17
HO5VV5-F 4G1 6.9-8.7 38 104 17
HO5VV5-F 5G1 7.8-9.8 48 123 17
HO5VV5-F 6G1 8.7-10.8 58 152 17
HO5VV5-F 7G1 9.5-11.8 67 183 17
HO5VV5-F 8G1 10.5-12.9 77 220 17
HO5VV5-F 9G1 11.3-14.0 86 230 17
