H05VV - F Flexible PVC Control Cable / DIN VDE 0281 Installation Cable

Certification
Good quality Medium Voltage Cable for sales
Good quality Medium Voltage Cable for sales
I'm Online Chat Now

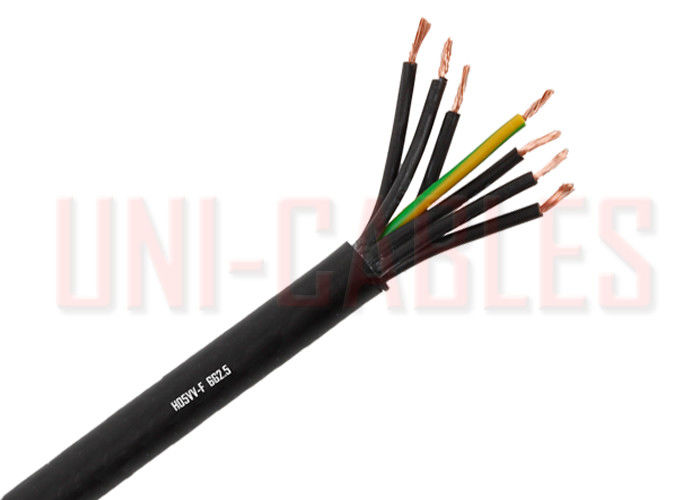

H05VV - F Flexible PVC Control Cable / DIN VDE 0281 Installation Cable

China H05VV - F Flexible PVC Control Cable / DIN VDE 0281 Installation Cable supplier

Large Image :  H05VV - F Flexible PVC Control Cable / DIN VDE 0281 Installation Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: CCC,ISO9001
Model Number: H05VV-F

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: 100 meters per roll, or 1000 meters per reel
Supply Ability: 10000 per Week
Contact Now
Detailed Product Description
Voltage Rating: 300/500V Temperature Rating: Fixed: -40°C To +70°C Flexed: -7°C To +70°C
Minimum Bending Radius: Flexed: 7.5 X Overall Diameter Sheath Colour: Black
Conductor: Class 5 Flexible Copper Conductor Insulation: PVC TI2

H05VV5-F European Flexible Control Cable Oil Resistant and Number Coded



APPLICATION

H05VV5-F cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications. H05VV5-F cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. H05VV5-F are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications.



H05VV5-F Cable Construction

  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
  • PVC conductor insulation TI2 to DIN VDE 0281 part 1
  • Conductors color coded to DIN VDE 0293-308
  • Green-yellow grounding (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • PVC outer jacket TM2 to DIN VDE 0281 part 1
  • PVC outer jacket color by request

Technical Data

  • PVC-control cables to DIN VDE 0281 part 5 and IEC 60227-5, HD 21.5 S3
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Nominal Voltage
    U0/U 300/500 V
  • Max. permissible Operating Voltage
    in three-phase and one-phase
    a.c. system U0/U 318/550 V
    in direct current system
    U0/U 413/825 V
  • Test Voltage 2000 V
  • Breakdown Voltage
    Min. 4000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)





Description & No. Conductors x cross-sec.
mm2
Outer Ø (mm) Copper Weight Weight AWG
kg/km kg/km
H05VV-F 2x0.75 6.4 14.4 50 18
H05VV-F 3G0.75 6.8 21.6 60 18
H05VV-F 4G0.75 7.4 29 73 18
H05VV-F 5G0.75 8.3 36 88 18
H05VV-F 2x1 6.8 19 57 17
H05VV-F 3G1 7.2 29 73 17
H05VV-F 4G1 8 38 85 17
H05VV-F 5G1 8.8 48 105 17
H05VV-F 2x1.5 7.6 29 82 16
H05VV-F 3G1.5 8.2 43 95 16
H05VV-F 4G1.5 9.2 58 117 16
H05VV-F 5G1.5 9.3 72 144 16
H05VV-F 3G2.5 10.1 72 152 14
H05VV-F 4G2.5 11.2 96 192 14
H05VV-F 5G2.5 12.4 120 243 14
