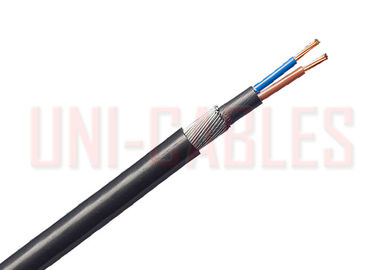

XLPE Industrial Multi Core Swa Cable , 6942X Steel Wire Armour Cable

China XLPE Industrial Multi Core Swa Cable , 6942X Steel Wire Armour Cable supplier

Large Image :  XLPE Industrial Multi Core Swa Cable , 6942X Steel Wire Armour Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-Cables
Certification: ISO9001
Model Number: 6942X

Payment & Shipping Terms:

Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: 1000 Meters in a Wooden Reel
Delivery Time: 15-18 working days
Supply Ability: 70000 Meters per Week
Contact Now
Detailed Product Description
Voltage Rating (Uo/U): 600/1000V Standard:: BS5467
Conductors:: Class 1 Solid & Class 2 Stranded Insulation: XLPE
Armour: Galvanized Mild Steel Wires Outer Sheath: PVC (Polyvinyl Chloride)

Type 6942X Armoured Electrical Cable Steel Wire Armoured SWA Cable







APPLICATION

Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.



Steel Wire Armour cable BS5467 (SWA) is a hard-wearing power cable, with mechanical protection, designed for the supply of mains electricity. SWA is suitable for indoors and outdoors, in cable ducts or directly buried in the ground. Multi-core steel wire armoured cable can also be used for auxiliary control.





Standard: BS5467
Conductors: Class 1 solid & Class 2 stranded, plain copper to EN 60228
Insulation: XLPE
Bedding: PVC
Armour: Galvanised mild steel to BS EN 10257-1
Sheath: PVC

Core identity/colours:
2 Core Blue/Brown
3 Core Brown/Black/Grey
4 Core Blue/Brown/Black/Grey
5 Cores and above Numbered cores



DIMENSIONS

Conductor size Insulation Bedding Bedding Diam Armour Sheath r/t Overall Diam Cable weight
  r/t (mm) r/t (mm) (mm) size (mm) (mm) (mm) (Kg/Km)
1.5mm² (class 1) 0.6 0.8 6.8 0.9 1.3 11.2 275
1.5mm² (class 2) 0.6 0.8 7.2 0.9 1.3 11.8 300
2.5mm² (class 1) 0.7 0.8 8 0.9 1.4 12.6 352
2.5mm² (class 2) 0.7 0.8 8.5 0.9 1.4 13.1 368
4.0mm² (class 2) 0.8 0.8 9.95 0.9 1.4 14.55 460
6.0mm² (class 2) 0.8 0.8 11.1 1.25 1.5 16.6 650
10.0mm² (class 2) 1 0.8 13.75 1.25 1.6 19.45 880
16.0mm² (class 2) 1 0.8 15.85 1.6 1.6 22.25 1243
