BS6622 Standard 11kv Medium Voltage Cable XLPE SWA Class 2 Semiconductor

Certification
Good quality Medium Voltage Cable for sales
Good quality Medium Voltage Cable for sales
I'm Online Chat Now

BS6622 Standard 11kv Medium Voltage Cable XLPE SWA Class 2 Semiconductor

China BS6622 Standard 11kv Medium Voltage Cable XLPE SWA Class 2 Semiconductor supplier

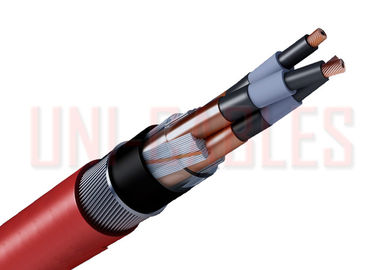

Large Image :  BS6622 Standard 11kv Medium Voltage Cable XLPE SWA Class 2 Semiconductor

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: BS6622 XLPE PVC

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Price: US$25-36 per Meter
Packaging Details: 200M in Steel Reels
Delivery Time: 15-20 working days
Supply Ability: 7000 Meters per Week
Detailed Product Description
Conductor: Class 2 Stranded Copper Conductor Conductor Screen: Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation: XLPE (Cross-Linked Polyethylene) Insulating Screen: Semi-conducting XLPE(Cross-Linked Polyethylene)
Metallic Screen: Individual Copper Wire Screen Armour: SWA (Steel Wire Armoured)
Sheath: MDPE (Medium Density Polyethylene) Voltage Rating (Uo/U)(Um): 6.35/11 (12)KV

BS6622 Standard 11kv Medium Voltage Cable XLPE MDPE for Underground System

APPLICATION
Power cables for power networks, underground and in cable
ducting.


Voltage Rating (Uo/U)(Um):6.35/11 (12)KV
Temperature Rating:0°C to +90°C
Temperature Index:+280°C
Minimum Bending Radius:12 x overall diameter

Conductor
Class 2 stranded copper conductor according to BS EN 60228(previously BS 6360)
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene) Type GP8 according toBS 7655
Insulating Screen
Semi-conducting XLPE(Cross-Linked Polyethylene)
Separator
Water blocking tape
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Individual copper wire screen according to BS 6622
Filler
PET (Polyethylene Terephthalate) fibres
Separator
Binding tape
Bedding
PVC (Polyvinyl Chloride) Type TM1 according to BS 7655
Armour
SWA (Steel Wire Armoured)
Sheath
PVC (Polyvinyl Chloride) Type TM1 according to BS 7655

Sheath Colour
Red/Black

DIMENSIONS



NO. OF CORES NOMINAL CROSS SECTIONAL AREA
mm²
Under Armour NOMINAL DIAMETER
Over Armour
Overall NOMINAL WEIGHT
kg/km
    mm mm mm
1 50 21.7 24.9 28.5 1200
1 70 23 26.2 30 1500
1 95 24.7 27.9 31.7 1600
1 120 26.7 29.9 33.9 2100
1 150 27.5 31.5 35.7 2500
1 185 29.3 33.3 37.5 2900
1 240 31.6 35.6 40 3600
1 300 34.6 38.6 43 4300
1 400 37 41 45.8 5200
1 500 40.5 45.5 50.5 6500
1 630 44.6 49.6 54.8 8000
1 800 48.8 53.8 59.2 9850
1 1000 53.5 58.5 64.3 12100
3 25 39 44 48.8 4300
3 35 41.6 46.6 51.6 4700
3 50 44.4 49.4 54.6 5300
3 70 48.1 53.1 58.5 6300
3 95 52 57 62.6 7300
3 120 55.6 60.6 66.6 8400
3 150 58.6 63.6 69.8 9600
3 185 62.7 67.7 74.1 11000
3 240 68.1 74.4 81.2 14000
3 300 73.5 79.8 87 16600
