PE Copper XLPE MV Cable 6 10 KV N2XS2Y Single Core Medium Voltage Power

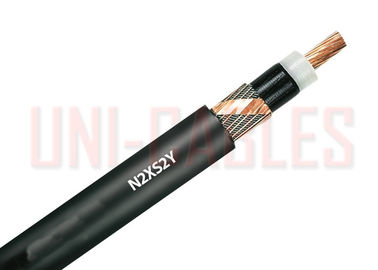

: Large Image : PE Copper XLPE MV Cable 6 10 KV N2XS2Y Single Core Medium Voltage Power

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	N2XS2Y

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	Negotiable
Packaging Details:	200M in Steel Reels
Delivery Time:	15-20 working days
Supply Ability:	7000 Meters per Week

Contact Now

Detailed Product Description

Voltage Rating (Uo/U)(Um):	6/10 (12)kV	Test Voltage:	Test Voltage
Temperature Rating:	Flexed: -20°C To +90°C	Short Circuit Temperature:	+250°C
Conductor:	Class 2 Stranded Copper Conductor	Screen:	Screen
Sheath:	PE (Polyethylene)

N2XS2Y XLPE PE Medium Voltage Cable 6/10(12) KV Single Core Power Cable

APPLICATION
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. For installation in ground, in water outdoors, indoors and in cable ducts for power stations, industry, and distribution networks.

Voltage Rating (Uo/U)(Um):6/10 (12)kV
Test Voltage:21kV
Temperature Rating:Fixed: -20°C to +90°C
Flexed: -20°C to +90°C
Short Circuit Temperature:+250°C
Minimum bending Radius:15 x overall diameter
Sheath Colour:Black

Conductor
Class 2 stranded copper conductor according to BS EN 60228(previously BS 6360)
Inner Semi-Conductive Layer
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene)
Outer Semi-Conductive Layer
Semi-conductive material
Screen
Copper wires
Sheath
PE (Polyethylene)

DIMENSIONS

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA		MAXIMUM OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	CURRENT CARRYING CAPACITY
NO. OF CORES	Conductor mm²	Copper Wire Screen mm²	MAXIMUM OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	In Ground Amps	In Air Amps
1	35	RM/16	28	820	187	197
1	50	RM/16	29	960	220	236
1	70	RM/16	31	1150	269	292
1	95	RM/16	32	1450	320	358
1	120	RM/16	34	1700	363	413
1	150	RM/25	35	2000	405	468
1	185	RM/25	37	2350	456	535
1	240	RM/25	39	2900	526	631
1	300	RM/25	41	3550	591	722
1	400	RM/35	45	4500	662	827
1	500	RM/35	48	5550	744	949
