1 X 16 RM ISO9001 Low Voltage Cable , 0.6 1 KV Black Low Smoke Zero Halogen Cable

China 1 X 16 RM ISO9001 Low Voltage Cable , 0.6 1 KV Black Low Smoke Zero Halogen Cable supplier

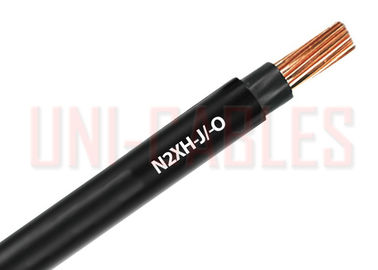

Large Image :  1 X 16 RM ISO9001 Low Voltage Cable , 0.6 1 KV Black Low Smoke Zero Halogen Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: N2XH-J

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Price: Negotiable
Packaging Details: 200M in Steel Reels
Delivery Time: 15-20 working days
Supply Ability: 7000 Meters per Week
Contact Now
Detailed Product Description
Standard: VDE 0276-604 Conductor: Cl.1 1 Or Cl.2 Copper Stranded
Insulation: XLPE 2XI1 Sheathing Material: FRNC-compound HM4
Sheath Color: Black Bending Radius: 15 X DA

N2XH-J Low Voltage Cable FRNC 0.6/1 KV Zero-halogen,Low-smoke Power Cable





APPLICATION

Safety cables are used in all locations where a high degree of protection against fire and fire-damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors and outdoors. They may not be installed directly into the ground and into the water. This cable conforms to Safety Class II standards.





CONSTRUCTION

1 ..... solid or stranded bare copper

2 ..... core insulation of halogen-free, cross-linked polyethylene

3 ..... core covering of a halogen-free compound

4 ..... outer sheath of halogen-free, cross-linked polymer compound, black



Conductor material: bare copper

Conductor class: class 1, from 25 sqmm class 2

Insulation: XLPE 2XI1

Sheathing material: FRNC-compound HM4

Flame-retardant: DIN EN 50266-2-4/VDE 0482-266-2-4/IEC 60332-3-24 (cat. C)

Smoke density: DIN EN 61034/IEC 61034

Halogen-free: DIN EN 50267/IEC 60754

Maximum permitted conductor temperature: 90 °C

Permitted outer cable temperature, fixed: -30 - +70 °C

Permitted outer cable temperature, in motion/ during installation: -5 - +70 °C

Bending radius, fixed installation: 15 x DA



DIMENSIONS

Number of cores x conductor cross-section Construction Construction of individual conductor External diameter Conductor diameter Fire load Conductor resistance at 20 °C Conductor resistance at 90 °C Cable weight
    nominal approx. nominal   max. max. approx.
N x mm²   n x mm mm mm kwh/m Ω/km Ω/km kg/km
1 x 1,5 RE 1 x 1,38 5,4 1,38 0,15 12,10 15,403 43
1 x 2,5 RE 1 x 1,78 5,8 1,78 0,17 7,41 9,433 56
1 x 4 RE 1 x 2,25 6,4 2,25 0,20 4,61 5,869 75
1 x 6 RE 1 x 2,76 6,9 2,76 0,22 3,08 3,921 97
1 x 10 RE 1 x 3,56 7,7 3,57 0,26 1,83 2,330 140
1 x 16 RM 7 x 1,70 9,1 5,00 0,36 1,15 1,464 202
1 x 25 RM 7 x 2,13 11 6,10 0,48 0,727 0,925 302
1 x 35 RM 7 x 2,52 12 7,20 0,55 0,524 0,667 397
1 x 50 RM 19 x 1,83 13 8,30 0,65 0,387 0,493 523
1 x 70 RM 19 x 2,17 15 10,10 0,84 0,268 0,341 745
1 x 95 RM 19 x 2,52 17 11,90 0,97 0,193 0,246 986
1 x 120 RM 37 x 2,03 18 13,00 1,10 0,153 0,195 1214
1 x 150 RM 37 x 2,27 21 14,60 1,43 0,124 0,158 1536
1 x 185 RM 37 x 2,52 23 16,20 1,72 0,0991 0,126 1888
1 x 240 RM 61 x 2,24 26 18,80 2,02 0,0754 0,096 2472
1 x 300 RM 61 x 2,50 28 20,60 2,34 0,0601 0,077 2945

2 x 1,5 RE 1 x 1,38 9 1,38 0,38 12,10 15,403 120
2 x 2,5 RE 1 x 1,78 10 1,78 0,45 7,41 9,433 154
2 x 4 RE 1 x 2,25 11 2,25 0,53 4,61 5,869 204
2 x 6 RE 1 x 2,76 12 2,76 0,60 3,08 3,921 263
2 x 10 RE 1 x 3,56 13 3,57 0,73 1,83 2,330 374
2 x 16 RM 7 x 1,70 16 5,00 1,06 1,15 1,464 563
2 x 25 RM 7 x 2,13 20 6,10 1,52 0,727 0,925 840
2 x 35 RM 7 x 2,52 22 7,20 1,79 0,524 0,667 1106
2 x 50 RM 19 x 1,83 25 8,30 2,18 0,387 0,493 1444
2 x 70 RM 19 x 2,17 29 10,10 2,89 0,268 0,341 2029
2 x 95 RM 19 x 2,52 33 11,90 3,61 0,193 0,246 2737
2 x 120 RM 37 x 2,03 36 13,00 4,23 0,153 0,195 3343
2 x 150 RM 37 x 2,27 40 14,60 5,30 0,124 0,158 4192
2 x 185 RM 37 x 2,52 44 16,20 6,48 0,0991 0,126 5167
2 x 240 RM 61 x 2,24 50 18,80 8,09 0,0754 0,096 6807
2 x 300 RM 61 x 2,50 55 20,60 9,39 0,0601 0,077 8072

3 x 1,5 RE 1 x 1,38 9 1,38 0,44 12,10 15,403 135
3 x 2,5 RE 1 x 1,78 10 1,78 0,51 7,41 9,433 181
3 x 4 RE 1 x 2,25 11 2,25 0,60 4,61 5,869 242
3 x 6 RE 1 x 2,76 13 2,76 0,69 3,08 3,921 319
3 x 10 RE 1 x 3,56 14 3,57 0,83 1,83 2,330 464
3 x 16 RM 7 x 1,70 17 5,00 1,22 1,15 1,464 697

3 x 35 RM 7 x 2,52 23 7,20 2,08 0,524 0,667 1393
3 x 50 RM 19 x 1,83 26 8,30 2,56 0,387 0,493 1847
3 x 70 RM 19 x 2,17 31 10,10 3,43 0,268 0,341 2666
3 x 95 RM 19 x 2,52 36 11,90 4,17 0,193 0,246 3535
3 x 120 RM 37 x 2,03 38 13,00 4,74 0,153 0,195 4322
3 x 150 RM 37 x 2,27 43 14,60 6,03 0,124 0,158 5442
3 x 185 RM 37 x 2,52 48 16,20 7,40 0,0991 0,126 6742
3 x 240 RM 61 x 2,24 54 18,80 9,23 0,0754 0,096 8864
3 x 300 RM 61 x 2,50 59 20,60 10,79 0,0601 0,077 10522

4 x 1,5 RE 1 x 1,38 10 1,38 0,52 12,10 15,403 163
4 x 2,5 RE 1 x 1,78 11 1,78 0,60 7,41 9,433 214
4 x 4 RE 1 x 2,25 12 2,25 0,72 4,61 5,869 294
4 x 6 RE 1 x 2,76 14 2,76 0,83 3,08 3,921 390
4 x 10 RE 1 x 3,56 16 3,57 1,03 1,83 2,330 586
4 x 16 RM 7 x 1,70 19 5,00 1,50 1,15 1,464 874
4 x 25 RM 7 x 2,13 23 6,10 2,14 0,727 0,925 1332
4 x 35 RM 7 x 2,52 26 7,20 2,57 0,524 0,667 1777
4 x 50 RM 19 x 1,83 29 8,30 3,15 0,387 0,493 2343
4 x 70 RM 19 x 2,17 35 10,10 4,17 0,268 0,341 3384
4 x 95 RM 19 x 2,52 39 11,90 5,16 0,193 0,246 4490
4 x 120 RM 37 x 2,03 43 13,00 5,98 0,153 0,195 5558
4 x 150 RM 37 x 2,27 48 14,60 7,55 0,124 0,158 6998
4 x 185 RM 37 x 2,52 53 16,20 9,35 0,0991 0,126 8657
4 x 240 RM 61 x 2,24 60 18,80 11,54 0,0754 0,096 11385
4 x 300 RM 61 x 2,50 65 20,60 13,44 0,0601 0,077 13539

5 x 1,5 RE 1 x 1,38 11 1,38 0,62 12,10 15,403 193
5 x 2,5 RE 1 x 1,78 12 1,78 0,71 7,41 9,433 256
5 x 4 RE 1 x 2,25 13 2,25 0,85 4,61 5,869 352
5 x 6 RE 1 x 2,76 15 2,76 0,99 3,08 3,921 475
5 x 10 RE 1 x 3,56 17 3,57 1,22 1,83 2,330 708
5 x 16 RM 7 x 1,70 21 5,00 1,87 1,15 1,464 1081
5 x 25 RM 7 x 2,13 26 6,10 2,61 0,727 0,925 1631
5 x 35 RM 7 x 2,52 29 7,20 3,11 0,524 0,667 2163
5 x 50 RM 19 x 1,83 33 8,30 3,89 0,387 0,493 2915
