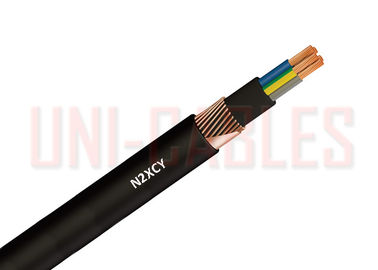

N2XCY Low Voltage Cable 0,6/1 kV With Concentric Protective Cu Conductor



APPLICATION

Distribution and signal power cable for static application in ground, in water, within facilities, in cable canals, in concrete, in conditions where there is a danger of possible mechanical damages, but where the cable is not exposed either to systematic mechanical stress or heavier tensile strain.



Concentric conductor can be used as neutral, protective or earth connection, and in conditions where it is exposed to danger of damages caused by digging, it acts as protection against contact voltage, in case of rough insulation damage.



Used in transformer stations, industrial plants, metropolitan networks and in other electric plants where heavier current and thermal loads are expected (operating temperature of conductor up to 90 oC).







Technical data

Standard VDE 0276-603
Direct burial yes
CPR-performance Eca
Conductor material bare copper
Conductor class class 1, from 25 sqmm class 2
Insulation XLPE DIX3
Sheathing material PVC DMV 5
Flame-retardant VDE 0482-332-1-2/IEC 60332-1-2
UV-resistant yes
For outdoor use yes
Maximum permitted conductor temperature 90 oC
Permitted outer cable temperature, fixed -35 - +70 oC
Permitted outer cable temperature, in motion/during installation -5 - +70 oC
Bending radius, fixed installation 15 x DA







DIMENSIONS

Nom. Cross Section Area Overall Diameter Cable Weight DC Resistance at 20°C
approx. approx.
mm2 mm kg/km Max. (Ω/km)
1.5 / 1.5 9.7 114 12.1
2.5 / 2.5 10.2 135 7.41
4 / 4 10.8 170 4.61
6 / 6 11.3 214 3.08
10 / 10 12.4 304 1.83
16 / 16 13.8 431 1.15
25 / 16 15.5 548 0.727
35 / 16 16.6 650 0.524
50 / 25 18.8 892 0.387
70 / 35 21 1,207 0.268
95 / 50 23.5 1,600 0.193
120 / 70 26 2,045 0.153
150 / 70 28 2,320 0.124
185 / 95 30.5 2,942 0.0991
240 / 120 34 3,761 0.0754
300 / 150 37 4,591 0.0601
400 / 185 41.5 5,830 0.047
500 / 240 46 7,450 0.0366
630 / 300 52 9,561 0.0283
800 / 400 58 12,290 0.0221
AC Resistance at 90°C Current - Carrying Capacity at 30° C Short circuit current at 1 sec
in air in ground
Max. (Ω/km) Max. (A) Max. (A) Max. (kA)
15.429 30 34 0.21
9.449 40 44 0.36
5.878 52 57 0.57
3.927 66 71 0.86
2.333 90 95 1.43
1.466 119 122 2.29
0.927 158 157 3.58
0.668 193 188 5.01
0.494 236 223 7.15
0.342 297 271 10.01
0.247 363 322 13.59
0.196 419 361 17.16
0.159 476 402 21.45
0.128 540 445 26.46
0.098 625 499 34.32
0.079 698 543 42.9
0.063 780 588 57.2
0.051 867 634 71.5
0.041 969 685 90.09
0.035 1081 743 114.4
