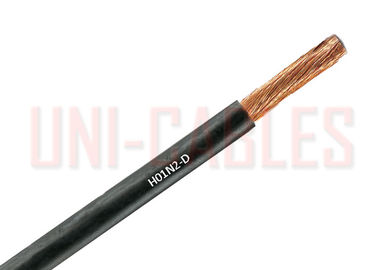

Heat Cold Resistance H01N2-D Rubber Flexible Cable Special Welding BS EN 50525-2-81
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Conductor: | Plain Annealed Flexible Copper, Class 5 | Insulation: | Cross-linked EPDM |
|---|---|---|---|
| Sheath: | Cross-linked EPDM | Voltage: | 450/750V |
| Temperature Rating: | -40°C To +90°C | Min Bending Radius: | 3 X Diameter |
H01N2-D Rubber Flexible Cable BS EN 50525-2-81 Special Welding Cable
APPLICATION
▯ For the transmission of high currents from the electric welding device to the welding tool
▯ For flexible use under rough conditions
▯ For manually and automatically operated line and spot welding machines
▯ On assembly lines and conveyor systems
▯ Machine tools
▯ Automobile and ship building
Advantage
▯ Retains the high flexibility also under the influence of
- light
- ozone
- oxygen
- inert gas
- oil
▯ Resistant against the effects of cold, heat, and fire
▯ Use outdoors or in dry and damp rooms
Construction
▯ Bare or tinned copper* wire class D acc. to VDE 0282 part 6 or HD 22.6
▯ Up to 95 mm² this corresponds to approximately Class 6 and from 120 mm² approximately class 5 in acc. with VDE 0295
▯ Separator of synthetic foil or paper
▯ Outer sheath of polychloroprene
DIMENSIONS
| Number of conductors nom. cross section area n° x mm² |
Strands conductor maximum diameter mm |
Average insulation thickness mm |
Average sheath thickness mm |
Cable nominal weight kg / km |
Max conductor resistance at 20° C Ohm / km |
| 1 x 10 | 021 | 200 | 97 | 148 | 191 |
| 1 x 16 | 021 | 200 | 110 | 200 | 121 |
| 1 x 25 | 021 | 200 | 127 | 295 | 0,780 |
| 1 x 35 | 021 | 200 | 142 | 400 | 0,554 |
| 1 x 50 | 021 | 220 | 165 | 555 | 0,386 |
| 1 x 70 | 021 | 240 | 192 | 760 | 0,272 |
| 1 x 95 | 021 | 260 | 214 | 1020 | 0,206 |
| 1 x 120 | 051 | 280 | 240 | 1235 | 0,161 |
| 1 x 150 | 051 | 300 | 264 | 1520 | 0,129 |
