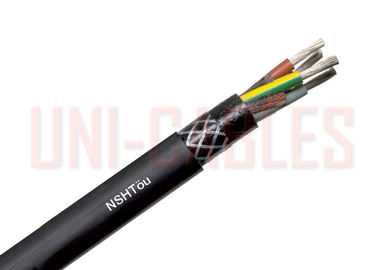

NSHTöu EPM Flexible Cable Tinned Copper Conductor Rubber Sheathed For Reeling Purposes Crane

NSHTöu Flexible Cable Rubber Sheathed Cable for Reeling Purposes Crane Cable

APPLICATION

It is to be used in dry and humid locations as well as in the open-air for frequent reeling processes and when the cable is exposed to heavy tensile and torsion load as well as to forced bending as in the case of cable carriages, line chains, drums or other mechanical equipment. Travel speed up to 120 m/min.

Conductor:tinned copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295

Insulation:rubber compound on ethylene-propylene basis (EPM, earlier: EPR), i.e. 3GI3 or GI1 acc. to DIN VDE 0207 part 20, concentrically stranded cores in layers

Inner sheath:rubber compound on poly-chloroprene basis (CR), i.e. 5GM3 acc. to DIN VDE 0207 part 21

Textile braid:fitted in inner or external sheath to prevent cable torsion

Sheath:rubber compound on poly-chloroprene basis (CR) (= Neoprene), i.e. 5GM2 or 5GM3 acc. to DIN VDE 0207 part 21

Sheath colour:black

Temperature range:

during application:                     -25 °C up to +60 °C

fixed installed:                           -40 °C up to +80 °C

at short circuit of max. 5 s:        Up to 200 °C

Nominal voltage:                     Uο/U = 0,6/1 kV

Test voltage:                            2500 V

Max. permitted voltage:

in AC installations:                      Uο/U = 0,7/1,2 kV

in DC installations:                      Uο/U = 0,9/1,8 kV

Specific el. resistance of insulation:min. 10 MΩ x km

Max. tensile strength:

static:                                        15 N/mm²

dynamic:                                   30 N/mm²

Conveyor speed:                    Up to 120 m/min

Other characteristics:            Resistance to oil, UV-irradiation, greases, gasoline, weather conditions

Behaviour in fire:                   IEC 60332-1
