PV1-F 0.9 / 1.8KV 2mm Solar Power Cables , HEPR Single Core DC Photovoltaic Wire

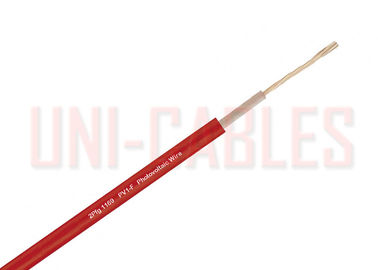

: Large Image : PV1-F 0.9 / 1.8KV 2mm Solar Power Cables , HEPR Single Core DC Photovoltaic Wire

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001,CCC
Model Number:	PV1-F

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	US$ 1.5-1.8 per Meter
Packaging Details:	100 Meters oer
Delivery Time:	15-20 working days
Supply Ability:	100km per Month

Contact Now

Detailed Product Description

Conductor:	Class 5 Flexible Tinned Copper Conductor	Insulation:	HEPR
Sheath:	Crossed Linked Compound M21	Voltage Rating (Uo/U):	AC: 600/1000V, DC: 900/1800V
Temperature Rating:	Fixed: -40°C To +90°C	Minimum Bending Radius:	Flexed: 5 X Overall Diameter
Maximum Voltage (Umax):	1.8kV DC (conductor/conductor, Non Earthed System, Circuit Not Under Load)	Maximum Conductor Temperature:	+120°C (for 20000h)

PV1-F Solar Power Cable Single Core DC 0.9/1.8KV Photovoltaic Wire

APPLICATION

Single core flexible cables suited for photovoltaic and solar system with cross-linked polymer insulation and halogen free sheath. Tested for more 25 years lifetime. These cables can be used up 1800V to earth. Cable suitable for the interconnection of the various elements of photovoltaic systems, suitable for fixed installations outside and indoor, unprotected pipes. For direct, or indirect under- ground wiring.

additional features:
- ozone-resistant according to EN50396
- UV-resistant according to HD605/A1
- the cable is tested for durability according to EN 60216 (indicated also in 2P fg 169/08.2007)

standard interpretation under:
- continuous use temperature 120°C for 20000h (= 2.3, years)
- continuous use temperature 90°C (= 30 years )

Voltage Rating (Uo/U)

AC: 600/1000V

DC: 900/1800V

Temperature Rating

Fixed: -40°C to +90°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 5 x overall diameter

Maximum Voltage (Umax) 1.8kV DC

Maximum Conductor Temperature +120°C (for 20000h)

DIMENSIONS

Number of cores x conductor cross-section	Construction of individual conductor	External diameter	Conductor diameter	Insulation thickness	Conductor resistance at 20 °C	Current load	Cu weight	Cable weight
N x mm²	n x mm	mm	mm	mm	mm	Ω/km	kg/km	kg/km
1 x 1,5	30 x 0,25	5,1	1,6	0,7	13,3	30	14,4	38,4
1 x 2,5	50 x 0,25	5,4	2,0	0,7	7,98	41	24	45,4
1 x 4	56 x 0,30	6,2	2,5	0,7	4,95	55	38,4	60,1
1 x 6	84 x 0,30	6,9	3,1	0,7	3,30	70	57,6	90,7
1 x 10	80 x 0,40	8,2	4,1	0,7	1,91	98	96	131,1
1 x 16	128 x 0,40	9,3	5,2	0,7	1,21	132	153,6	187,1
1 x 25	200 x 0,40	10,8	6,5	0,9	0,78	176	240	276,1
1 x 35	280 x 0,40	12,1	7,5	0,9	0,554	218	336	368,8
1 x 50	400 x 0,40	14,8	9,0	1,0	0,386	276	480	557
1 x 70	356 x 0,50	16,9	11,0	1,1	0,272	347	672	767
1 x 95	485 x 0,50	18,7	12,7	1,1	0,206	416	912	989,6
1 x 120	614 x 0,50	20,7	13,7	1,2	0,161	488	1152	1232,8
