|Voltage Rating (Uo/U):||300/500V||Temperature Rating:||-10°C To 250°C|
|Conductor:||Solid Plain Copper Conductor||Insulation:||Magnesium Oxide|
|Sheath:||Malleable Metal||Jacket:||Non Jacketed|

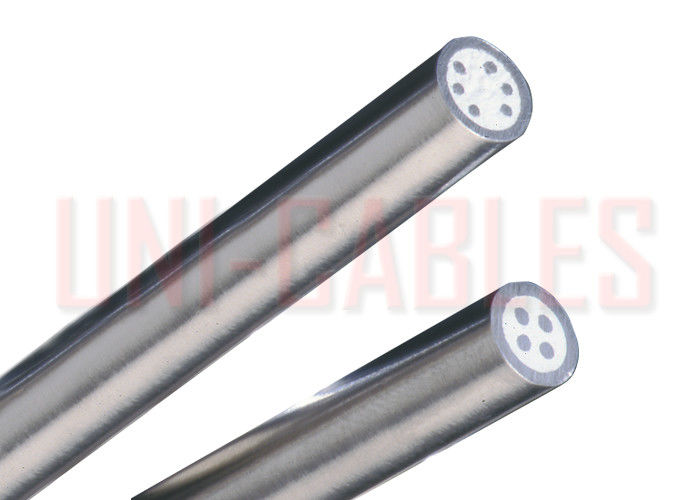

MICC Mineral Insulated Cable Malleable Metal Sheath High Temperature Cable
Our mineral insulated, metal-sheathed cable is ideally suited to solve a wide variety of problem applications.
The outer sheath can be made from any malleable metal in a wide range of diameters, containing single or multiple wires. Easily formed or bent, it can accommodate virtually any configuration. The outer sheath protects thermocouple or thermocouple extension wires from oxidation and hostile environments that would quickly destroy unprotected wire.
The mineral insulations available provide excellent high temperature dielectric strength to ensure signals are carried faithfully to the instrumentation or controls.
Features and Benefits
• Performs where conventional insulated wires burn and degrade
Fast and accurate
• Precisely measures temperature for a fast response
Tight moisture and gas seals
• Resists contamination
High pressure rating
• Allows use in pressure vessels and vacuum applications
• Adapts to virtually any application
Thermal shock resistance
• Withstands thermal cycling
Compact, durable and corrosion resistant
• Ensures long-life performance with minimum constraints on applications
High temperature rating
• Meets demanding application needs
High Purity Magnesium Oxide (MgO) 99.4 Percent
Magnesium Oxide (MgO) 96% Minimum Purity
The sheath serves to isolate and protect the wires and insulation from contamination and mechanical damage. There is no single sheath material that is appropriate for all conditions, so Watlow offers a wide variety. Temperature, strength, corrosiveness, service life and cost must be considered when selecting a sheath material.
Alloy 600—Maximum temperature: 2150°F (1175°C).
304 SS—Maximum temperature: 1650°F (900°C).
316 SS—Maximum temperature: 1650°F (900°C).
Hastelloy® X8—Maximum temperature: 2200°F (1205°C).
Inconel® 6255—Maximum temperature: 1800°F (980°C).
Haynes® Alloy 2302—Maximum temperature: 2150°F (1177°C).
