Type A3 High Voltage All Aluminum Alloy Conductor AAAC IEC 61089 AA6201

China Type A3 High Voltage All Aluminum Alloy Conductor AAAC IEC 61089 AA6201 supplier

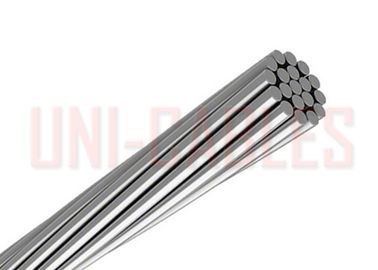

Large Image :  Type A3 High Voltage All Aluminum Alloy Conductor AAAC IEC 61089 AA6201

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: Type A3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Metric-Tons
Price: USD$3100-3300 Per MT
Packaging Details: 1 MT per Wooden Reel
Delivery Time: 15-20 days
Supply Ability: 100000MT per Month
Contact Now
Detailed Product Description
Conductor: AL6201-T81 Voltage: High Voltage
Size: 16-1120 Mm2 Standard: IEC Specification
No. Of Wires: 7-91 Resistivity: 52.5% IACS

IEC 61089 AAAC Conductor Type A3 All Aluminum Conductor AAAC6201



APPLICATION

AAAC conductor is used mainly in urban areas because the spacing is short and the supports are close.All aluminum conductors are made up of one or more strands of aluminum wire depending on the end usage. AAAC conductors are also used extensively in coastal areas because they have a very high degree of corrosion resistance.





Features:

  •  High conductivity
  •  Rust free
  •  Extended durability





CABLE STANDARDS
ASTM - B 399 Metric Units, ASTM - B 231, TS IEC 1089,
DIN 48201, BS 215, UNE 21.018



DIMENSIONS

IEC Spec
All Aluminum Alloy Conductors Type A3

Code
Name
Area
Actual
Equivalent
Copper Area
Stranding Overall
Diameter
Weight Rated
Strength
Maximum DC
Resistance
at 20℃
mm2 mm2 No/mm mm kg/km kN Ω /km
16 18.6 9.8 7/1.84 5.52 50.8 6.04 1.7896
25 29 15.2 7/2.30 6.9 79.5 9.44 1.1453
40 46.5 24.4 7/2.91 8.73 127.1 15.1 0.7158
63 73.2 38.4 7/3.65 10.95 200.2 23.06 0.4545
100 116 61 19/2.79 14 319.3 37.76 0.2877
125 145 76 19/3.12 15.6 399.2 47.2 0.2302
160 186 98 19/3.53 17.7 511 58.56 0.1798
200 232 122 19/3.95 19.8 638.7 73.2 0.1439
250 290 152 19/4.41 22.1 798.4 91.5 0.1151
315 366 192 37/3.55 24.9 1008.4 115.29 0.0916
400 465 244 37/4.00 28 1280.5 146.4 0.0721
450 523 275 37/4.24 29.7 1440.5 164.7 0.0641
500 581 305 37/4.47 31.3 1600.6 183 0.0577
560 651 342 61/3.69 33.2 1795.3 204.96 0.0516
630 732 384 61/3.91 35.2 2019.8 230.58 0.0458
710 825 433 61/4.15 37.4 2276.2 259.86 0.0407
800 930 488 61/4.40 39.6 2564.8 292.8 0.0361
900 1046 549 91/3.83 42.1 2888.3 329.4 0.0321
1000 1162 610 91/4.03 44.3 3209.3 366 0.0289
1120 1301 683 91/4.27 47 3594.5 409.92 0.0258

Type A3 High Voltage All Aluminum Alloy Conductor AAAC IEC 61089 AA6201
