UL854 Service Entrance UL Listed Cable , SER XHHW - 2 Aluminum Building Wire

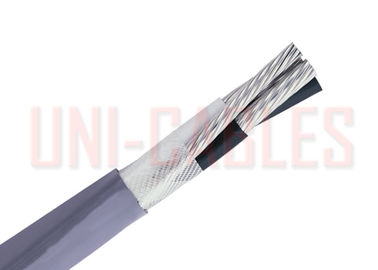

: Large Image : UL854 Service Entrance UL Listed Cable , SER XHHW - 2 Aluminum Building Wire

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	UL-LISTED
Model Number:	SER

Payment & Shipping Terms:

Minimum Order Quantity:	1KM
Price:	Negotiable
Packaging Details:	1km per reel
Delivery Time:	15-20 Working days
Supply Ability:	70km per Week

Contact Now

Detailed Product Description

Conductor:	AA8030	Insulation:	UL XLPE
Voltage Rating:	600V	Temperature Rating:	0°C To 90°C
Jacket:	PVC	Jacket Color:	Grey

UL854 UL Listed Service Entrance Cable SER (XHHW-2) Aluminum Building Cable

APPLICATIONS

SER is a type SE (service entrance), Style R (reinforcement tape) cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. It is most often used to deliver power from the service drop down to the meter base, and from the meter base to the distribution panel board.

Conductors: Compact strand soft drawn 8000 series aluminum conductor, per ASTM B-801

Insulation: Type XHHW-2 cross linked polyethylene (XLP) insulation.

The conductors are cabled together with a bare aluminum alloy ground.

Jacket: A gray sunlight resistance polyvinyl chloride (PVC) jacket.

Standards:

UL 44, 854 ASTM B-800, B-801

DIMENSIONS

Part number	Insulated Cond(s) Size (AWG)	Bare Conductor Size (AWG)	Nominal OD (inches)	Approx. Weight (LBS per 1000")	Amps at 90°C	Amps in Dwelling
Two Conductor SER
AL-SER-8-02	8	8	0.488	97	45	N/A
AL-SER-6-02	6	6	0.574	138	60	N/A
AL-SER-4-02R	4	6	0.632	177	75	N/A
AL-SER-4-02	4	4	0.669	193	75	N/A
AL-SER-2-02R	2	4	0.748	254	100	100
AL-SER-2-02	2	2	0.788	280	100	100
AL-SER-1-02	1	1	0.884	349	115	110
AL-SER-1/0-02R	1/0	2	0.915	384	135	125
AL-SER-1/0-02	1/0	1/0	0.964	423	135	125
AL-SER-2/0-02R	2/0	1	0.951	459	150	150
AL-SER-2/0-02	2/0	2/0	1.050	513	150	150
AL-SER-4/0-02R	4/0	2/0	1.193	690	205	200
AL-SER-4/0-02	4/0	4/0	1.264	766	205	200
Three Conductor SER
AL-SER-8-03	8	8	0.571	128	45	N/A
AL-SER-6-03	6	6	0.650	182	60	N/A
AL-SER-4-03	4	6	0.736	240	75	N/A
AL-SER-2-03	2	4	0.863	346	100	100
AL-SER-1-03	1	3	0.973	435	115	110
AL-SER-1/0-03	1/0	2	1.061	526	135	125
AL-SER-2/0-03	2/0	1	1.164	637	150	150
AL-SER-3/0-03	3/0	1/0	1.274	776	175	175
AL-SER-4/0-03	4/0	2/0	1.390	948	205	200
AL-SER-250-03	250	3/0	1.601	1106	230	225
AL-SER-300-03	300	4/0	1.741	1311	255	250
Four Conductor SER
AL-SER-2-04	2	4	0.973	438	100	100
AL-SER-2/0-04	2/0	1	1.299	807	150	150
AL-SER-4/0-04	4/0	2/0	1.557	1204	205	200
AL-SER-250-04	250	3/0	1.798	1404	230	225
