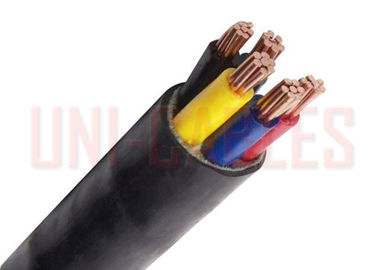

PVC BS6004 600 / 1100V Low Voltage Cable Multi Core For Infrastructure Construction
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Fire Resistance: | Yes | Conductor: | Class 2 Stranded Copper |
|---|---|---|---|
| Binder Tape: | Polyester Tape | Sheathing Material: | PVC |
| Sheath Color: | Black | Oversheath: | Flame Retardant PVC Compund |
BS6004 Low Voltage 600/1100V Multi Core Cable For Infrastructure Construction
Application:
Power cable: indoors, cable trunking, outdoors and buried in the ground for power stations, industry and switchgear as well as for urban supply networks, if mechanical damage is unlikely.
Special Features on Request :
- Fire resistance
- Oil resistance
- UV resistance
- Flame Retardant Cat A,B,C
- Flame Retardant non-category
- Heat resistance
- Anti-termite
- Anti-rodent
- Low smoke zero halogen
Note: Conductor shape
- 1.5 – 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
- 16 sqmm supplied in non-compacted circular circular stranded (rm) conductor shape
- 25-500 sqmm supplied in non-compacted circular stranded (rm) or compacted circular stranded (cm) conductor shape
Construction:
| Conductors : | Plain annealed stranded copper conductor |
| Insulation : | Flame retardant PVC compound |
| Filler (where applicable) : | PVC or Polypropylene yarn |
| Binder Tape (where applicable) : | Polyester (mylar) tape |
| Oversheath : | Flame retardant PVC compund |
Core Identification:
| Insulation | 1-Core : | Red, Yellow, Blue, Black, Yellow/Green or other colours as per customer's request |
| 2-Core : | Red and Black | |
| 3-Core : | Red, Yellow and Blue | |
| 4-Core : | Red, Yellow, Blue and Black | |
| Sheath | Black, Grey or White | |
DIMENSIONS
| Conductor | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Approx. Overall Diameter & Weight | ||||||||
| 2C | 3C | 4C | |||||||||
| Size | No/Dia. of Wire | 2C | 3C | 4C | OD | WT | OD | WT | OD | WT | |
| mm2 | mm | mm | mm | mm | mm | mm | kg/km | mm | kg/km | mm | kg/km |
| 1.5 | 7/0.53 | 0.8 | 1.8 | 1.8 | 1.8 | 11 | 145 | 11.5 | 165 | 12 | 200 |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 1.8 | 1.8 | 11.5 | 180 | 12 | 210 | 13 | 255 |
| 4 | 7/0.85 | 1 | 1.8 | 1.8 | 1.8 | 13.5 | 255 | 14 | 305 | 15.5 | 375 |
| 6 | 7/1.04 | 1 | 1.8 | 1.8 | 1.8 | 15 | 285 | 15.5 | 370 | 17 | 455 |
| 10 | 7/1.35 | 1 | 1.8 | 1.8 | 1.8 | 17 | 395 | 17.5 | 515 | 19 | 665 |
| 16 | 7/1.70 | 1 | 1.8 | 1.8 | 1.8 | 19 | 590 | 20 | 740 | 22 | 930 |
| 25 | 7/2.14 | 1.2 | 1.8 | 1.8 | 1.8 | 19 | 710 | 21 | 1015 | 23.5 | 1325 |
| 35 | 19/1.53 | 1.2 | 1.8 | 1.8 | 1.8 | 20 | 930 | 23 | 1330 | 26 | 1740 |
| 50 | 19/1.78 | 1.4 | 1.8 | 1.8 | 1.9 | 23 | 1225 | 26 | 1765 | 29 | 2320 |
| 70 | 19/2.14 | 1.4 | 1.9 | 1.9 | 2 | 25.5 | 1680 | 29 | 2435 | 33 | 3215 |
| 95 | 19/2.52 | 1.6 | 2 | 2.1 | 2.2 | 29 | 2280 | 35 | 3360 | 39 | 4400 |
| 120 | 37/2.03 | 1.6 | 2.1 | 2.2 | 2.3 | 32 | 2805 | 38 | 4140 | 42.5 | 5440 |
| 150 | 37/2.25 | 1.8 | 2.2 | 2.3 | 2.5 | 35 | 3430 | 42 | 5070 | 47 | 6675 |
| 185 | 37/2.52 | 2 | 2.4 | 2.5 | 2.6 | 39 | 4285 | 46 | 6330 | 53 | 8360 |
| 240 | 61/2.25 | 2.2 | 2.5 | 2.6 | 2.8 | 48 | 5565 | 56 | 8265 | 61 | 10870 |
| 300 | 61/2.52 | 2.4 | 2.7 | 2.8 | 3.1 | 53 | 6965 | 63 | 10355 | 68 | 13650 |
| 400 | 61/2.85 | 2.6 | 2.9 | 3.1 | 3.3 | 58 | 9020 | 70 | 13090 | 78 | 17360 |
