MV Aluminum Aerial Insulated Cable Overhead Conductor to AS / NZS 3599.1 XLPE HDPE

China MV Aluminum Aerial Insulated Cable Overhead Conductor to AS / NZS 3599.1 XLPE HDPE supplier

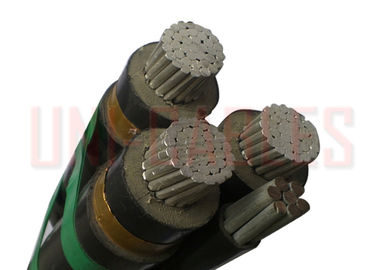

Large Image :  MV Aluminum Aerial Insulated Cable Overhead Conductor to AS / NZS 3599.1 XLPE HDPE

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: MV ABC

Payment & Shipping Terms:

Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: 2km per reel
Delivery Time: 15-20 Working Days
Supply Ability: 1000000 per week
Contact Now
Detailed Product Description
Conductor: Aluminum 1350-H19 Insulation: XLPE
Voltage: 12/20KV Temperature Rating: 0°C To 75°C
Color: Black Cores: 3 Cores

MV Aerial Bundled Cable Overhead Conductor to AS/NZS 3599.1(AL/XLPE/HDPE)





Application :



Three XLPE insulated cores are bundled around the AAAC/1120 support conductor in a right hand lay.


XLPE insulated twisted cables are applied for specially overhead installation

Special Features on Request :

  •  Oil Resistance

  •  UV Resistance

  •  Flame Retardant Cat. A, B, C

  •  Flame Retardant Non Category

  •  Heat Resistance

  •  Anti Termite

Construction

Phase Conductor Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen Extruded semi-conductive layer.
Insulation XLPE.
Insulation Screen Extruded semi-conductive layer.
Outer Sheath HDPE.
Support Conductor Aluminium alloy conductor (AAAC/1120).
Assembly Three XLPE insulated cores are bundled around the AAAC/1120 support conductor in a right hand lay.





Dimensions

number of cores x nominal cross section Nominal conductor diameter Nominal insulation thickness Nominal insulation screen thickness Nominal sheath thickness AAAC/1120 support conductor size Nominal overall diameter Weight Continuous current rating, A
Still air 1m/s wind 2m/s wind
mm2 mm mm mm mm No/mm mm kg/km A A A
6.35/11kV
3x35 6.9 3.4 0.8 1.2 7/4.75 52.4 1370 110 155 185
3x50 8.1 3.4 0.8 1.2 7/4.75 54.6 1530 130 185 225
3x70 9.7 3.4 0.8 1.2 7/4.75 57.8 1790 160 235 280
3x95 11.4 3.4 0.8 1.2 7/4.75 61.3 2100 195 285 345
3x120 12.8 3.4 0.8 1.2 19/3.50 67.3 2540 230 335 405
3x150 14.2 3.4 0.8 1.2 19/3.50 70.1 2840 255 380 460
3x185 15.7 3.4 0.8 1.2 19/3.50 73.1 3190 295 440 530
12.7/22kV
3x35 6.9 5.5 0.8 1.2 7/4.75 61 1780 110 155 180
3x50 8.1 5.5 0.8 1.2 7/4.75 63.3 1970 130 185 220
3x70 9.7 5.5 0.8 1.2 7/4.75 66.5 2260 160 230 275
3x95 11.4 5.5 0.8 1.2 7/4.75 69.9 2600 195 285 335
3x120 12.8 5.5 0.8 1.2 19/3.50 75.9 3070 225 330 395
3x150 14.2 5.5 0.8 1.2 19/3.50 78.7 3390 255 375 450
3x185 15.7 5.5 0.8 1.2 19/3.50 81.7 3760 290 435 520


MV Aluminum Aerial Insulated Cable Overhead Conductor to AS / NZS 3599.1 XLPE HDPE
