Voltage Rating: | 450/750 | Test Voltage: | 3kV |
---|---|---|---|
Minimum Bending Radius: | 4 X Overall Diameter | Conductor: | Class 2 Copper |
Insulation: | PVC V90 | Sheath: | PVC 5V90 |

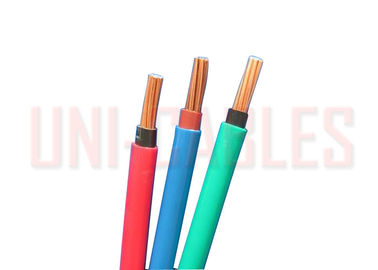

Australia Standard Single Core SDI Cables Double Insulated PVC Wire 450/750V
Application
For mains, submains and subcircuits unenclosed, enclosed in conduit, buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.
Cable Standards
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125
Cable Construction
Conductor: Plain annealed copper.
Insulation: Polyvinylchloride compound PVC V-90.
Insulation colour: Red, Black
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Orange, other colors are available upon request
Cable Parameter
Product code | Conductor | Cable | Min. installed bending radius mm | |||||
Nominal C.S.A. mm² |
Number and diameter of wires No/mm | Nominal diameter mm | Nominal insulation thickness mm | Overall diameter | Approx. mass kg/100 m | |||
Minimum mm |
Maximum mm |
|||||||
1.0SSDI | 1.0* | 1/1.13 | 1.13 | 0.6 | 3.9 | 4.1 | 2.9 | 15 |
1.5SDI | 1.5 | 7/0.50 | 1.5 | 0.6 | 4.3 | 4.5 | 3.5 | 20 |
2.5SSDI | 2.5* | 1/1.78 | 1.78 | 0.7 | 4.8 | 5.0 | 4.9 | 20 |
2.5SDI | 2.5 | 7/0.67 | 2 | 0.7 | 5 | 5.2 | 5.1 | 20 |
4SDI | 4 | 7/0.85 | 2.6 | 0.8 | 6.0 | 6.2 | 7.4 | 25 |
6SDI | 6 | 7/1.04 | 3.1 | 0.8 | 6.5 | 6.7 | 10 | 25 |
10SDI | 10 | 7/1.35 | 4.1 | 1.0 | 7.8 | 8.2 | 15 | 35 |
16SDI | 16 | 7/1.70 | 5.1 | 1 | 9.1 | 9.4 | 22 | 40 |
