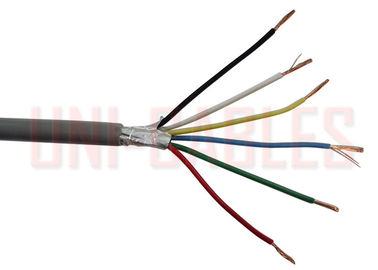

Type CVVS JIS Standard PVC Shielded Cable Insulated For Control Circuits

: Large Image : Type CVVS JIS Standard PVC Shielded Cable Insulated For Control Circuits

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	CVVS

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	Negotiable
Packaging Details:	200M in Steel Reels
Delivery Time:	15-20 working days
Supply Ability:	7000 Meters per Week

Contact Now

Detailed Product Description

Standard:	IEC60502-1	Conductor:	Annealed Copper Wires
Insulation:	PVC	Sheathing Material:	PVC
Sheath Color:	Black	Voltage:	600V

Type CVVS JIS Standard PVC Insulated Shielded Cable for Control Circuits

APPLICATION

CVVS cables are used in control circuits required electrostatic shielding in underground duct, conduit and open air.

Reference Standard:

IEC 60502-1

Cable Construction:

Conductor: Stranded annealed copper wires,

Sizes: 1.5 mm2 up to 10 mm2

Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,

More than 4 cores: Black core with marking numbers

Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)

Shield: Annealed copper tape, 0.1mm
Outer sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

Technical Characteristics:

Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts

Type CVVS JIS Standard PVC Shielded Cable Insulated For Control Circuits

Cable Parameter

O. OF CORES	CONDUCTOR			THICKNESS OF INSULATION	THICKNESS OF OUTER SHEATH	OVERALL DIAMETER	MAXIMUM CONDUCTOR RESISTANCE (AT 20^oC)	CABLE WEIGHT
	NOMINAL CROSS- SECTIONAL AREA	NO.& DIA. OF WIRES	DIAMETER
	NOMINAL CROSS- SECTIONAL AREA	NO.& DIA. OF WIRES	DIAMETER
	MM2	MM	MM	MM	MM	MM	OHM/KM	KG/KM
2	1.5	7 / 0.53	1.59	0.8	1.8	11.4	12.1	178
	2.5	7 / 0.67	2.01	0.8	1.8	12.3	7.41	213
	4	7 / 0.85	2.55	1	1.8	14.2	4.61	287
	6	7 / 1.04	3.12	1	1.8	15.4	3.08	350
	10	7 / 1.35	4.05	1	1.8	16.9	1.83	413
3	1.5	7 / 0.53	1.59	0.8	1.8	11.9	12.1	209
	2.5	7 / 0.67	2.01	0.8	1.8	12.9	7.41	254
	4	7 / 0.85	2.55	1	1.8	15	4.61	351
	6	7 / 1.04	3.12	1	1.8	16.2	3.08	435
	10	7 / 1.35	4.05	1	1.8	17.9	1.83	537
4	1.5	7 / 0.53	1.59	0.8	1.8	12.8	12.1	247
	2.5	7 / 0.67	2.01	0.8	1.8	13.9	7.41	305
	4	7 / 0.85	2.55	1	1.8	16.2	4.61	425
	6	7 / 1.04	3.12	1	1.8	17.6	3.08	533
	10	7 / 1.35	4.05	1	1.8	19.5	1.83	675
5	1.5	7 / 0.53	1.59	0.8	1.8	13.8	12.1	287
	2.5	7 / 0.67	2.01	0.8	1.8	15	7.41	357
	4	7 / 0.85	2.55	1	1.8	17.3	4.61	500
	6	7 / 1.04	3.12	1	1.8	19.2	3.08	636
	10	7 / 1.35	4.05	1	1.8	21.4	1.83	820
6	1.5	7 / 0.53	1.59	0.8	1.8	14.8	12.1	328
	2.5	7 / 0.67	2.01	0.8	1.8	16.1	7.41	412
	4	7 / 0.85	2.55	1	1.8	19	4.61	586
	6	7 / 1.04	3.12	1	1.8	20.8	3.08	744
	10	7 / 1.35	4.05	1	1.8	23.2	1.83	968
7	1.5	7 / 0.53	1.59	0.8	1.8	14.8	12.1	349
	2.5	7 / 0.67	2.01	0.8	1.8	16.1	7.41	442
	4	7 / 0.85	2.55	1	1.8	19	4.61	633
	6	7 / 1.04	3.12	1	1.8	20.8	3.08	810
	10	7 / 1.35	4.05	1	1.8	23.2	1.83	1,072
8	1.5	7 / 0.53	1.59	0.8	1.8	15.8	12.1	392
	2.5	7 / 0.67	2.01	0.8	1.8	17.3	7.41	498
	4	7 / 0.85	2.55	1	1.8	20.5	4.61	718
	6	7 / 1.04	3.12	1	1.8	21.7	3.08	919
	10	7 / 1.35	4.05	1	1.8	24.5	1.83	1,224
10	1.5	7 / 0.53	1.59	0.8	1.8	18.2	12.1	488
	2.5	7 / 0.67	2.01	0.8	1.8	19.9	7.41	622
	4	7 / 0.85	2.55	1	1.8	23.8	4.61	902
	6	7 / 1.04	3.12	1	1.8	22.4	3.08	1,159
	10	7 / 1.35	4.05	1	1.8	29.6	1.83	1,552
12	1.5	7 / 0.53	1.59	0.8	1.8	18.7	12.1	542
	2.5	7 / 0.67	2.01	0.8	1.8	20.5	7.41	697
	4	7 / 0.85	2.55	1	1.8	24.6	4.61	1,018
	6	7 / 1.04	3.12	1	1.8	27	3.08	1,316
	10	7 / 1.35	4.05	1	1.8	30.5	1.83	1,789
15	1.5	7 / 0.53	1.59	0.8	1.8	20	12.1	637
	2.5	7 / 0.67	2.01	0.8	1.8	22.1	7.41	827
	4	7 / 0.85	2.55	1	1.8	26.4	4.61	1,216
	6	7 / 1.04	3.12	1	1.8	29.1	3.08	1,582
20	1.5	7 / 0.53	1.59	0.8	1.8	22.1	12.1	796
	2.5	7 / 0.67	2.01	0.8	1.8	24.5	7.41	1,041
	4	7 / 0.85	2.55	1	1.8	29.5	4.61	1,547
	6	7 / 1.04	3.12	1	1.8	32.5	3.08	2,026
30	1.5	7 / 0.53	1.59	0.8	1.8	26.3	12.1	1,122
	2.5	7 / 0.67	2.01	0.8	1.8	28.2	7.41	1,482
	4	7 / 0.85	2.55	1	1.9	35.6	4.61	2,244
