JIS Standard Type VVF-GRD PVC Electrical Cable Insulated Solid Conductor Flat Twin And Earth

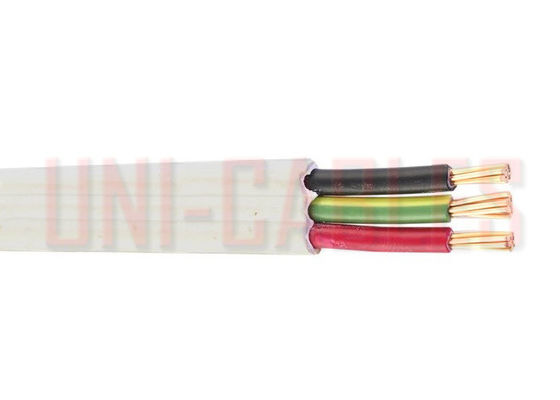

: Large Image : JIS Standard Type VVF-GRD PVC Electrical Cable Insulated Solid Conductor Flat Twin And Earth

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001,JIS
Model Number:	VVF-GRD

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	Negotiable
Packaging Details:	100 meters per roll, or 1000 meters per reel
Delivery Time:	10 working days
Supply Ability:	10000 per Week

Contact Now

Detailed Product Description

Voltage Rating:	450/750V	Temperature Rating:	90°C
Minimum Bending Radius:	4 X Cable OD	Conductor:	Class 2 Copper Conductor
Insulation:	PVC	Sheath:	PVC

Type VVF-GRD JIS Standard PVC Insulated Solid Conductor Flat Twin And Earth

Application

VVF-GRD cables are used for exposed fix installation in dry location, surface wiring,house lighting, residential power supply, concealed wiring in wooden partition or above ceiling, embedded in plaster.

Reference Standard:

TIS 11-2531

Cable Construction:

Conductor: Solid and stranded annealed copper,

Sizes: 1 mm2 up to 35 mm²

Insulation: Polyvinyl chloride (PVC)
Color : Light grey, Black, Ground

core:Green/Yellow

Sheath: Polyvinyl chloride (PVC), white color

Technical Characteristics:

Maximum conductor temperature 70^oC
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts

Cable Parameter

NO. OF CORES	CONDUCTOR			GROUND CONDUCTOR			THICK- NESS OF SHEATH	OVERALL DIAMETER		MAXIMUM CONTINUOUS CURRENT RATING IN FREE AIR	MINIMUM INSULATION RESISTANCE (AT 70oC)	CABLE WEIGHT
	SIZE	NO.& DIA. OF WIRES	THICK- NESS OF INSULA- TION	SIZE	NO.& DIA. OF WIRES	THICK- NESS OF INSULA- TION		LOWER LIMIT	UPPER LIMIT


	MM2	NO./MM	MM	MM2	NO./MM	MM	MM	MM	MM	A	MOHM-KM	KG/KM
2+1	1	1/1.13	0.8	1	1/1.13	0.6	1.4	5.2 x 10.0	6.4 x 12.0	13	0.0141	100
2+1	1	7/0.40	0.8	1	7/0.40	0.6	1.4	5.4 x 10.0	6.6 x 12.5	13	0.0135	100
2+1	1.5	1/1.38	0.8	1	1/1.13	0.6	1.4	5.6 x 10.5	6.6 x 12.5	17	0.0123	120
2+1	1.5	7/0.50	0.8	1	7/0.40	0.6	1.4	5.6 x 11.0	7.0 x 13.0	17	0.0116	120
2+1	2.5	1/1.78	0.8	1.5	1/1.38	0.6	1.4	5.8 x 11.5	7.2 x 14.0	22	0.0102	150
2+1	2.5	7/0.67	0.8	1.5	7/0.50	0.6	1.4	6.2 x 12.0	7.4 x 14.5	22	0.0093	150
2+1	4	1/2.25	0.9	2.5	1/1.78	0.6	1.4	6.6 x 13.0	7.8 x 15.5	30	0.0094	210
2+1	4	7/0.85	0.9	2.5	7/0.67	0.6	1.4	6.8 x14.0	8.2 x 16.5	30	0.0085	210
2+1	6	7/1.04	0.9	4	7/0.85	0.6	1.4	7.4 x 15.5	8.8 x 18.5	39	0.0073	290
2+1	10	7/1.35	1.1	4	7/0.85	0.6	1.5	8.8 x 18.5	10.5 x 21.5	53	0.0069	420
2+1	16	7/1.70	1.1	6	7/1.04	0.6	1.5	9.8 x 21.0	11.5 x 24.5	69	0.0057	590
2+1	25	7/2.14	1.3	6	7/1.04	0.6	1.6	11.5 x 24.5	13.5 x 28.0	92	0.0054	840
2+1	35	19/1.53	1.3	10	7/1.35	0.6	1.7	13.0 x 28.0	15.0 x 32.0	112	0.0047	1120
