Detailed Product Description
Conductor: Aluminum Alloy 8030 Insulation: XHHW
Rated Voltage: 0.6/1kv Temperature: -40°C To 90°C
Armoured: Al Interlock Color: Black

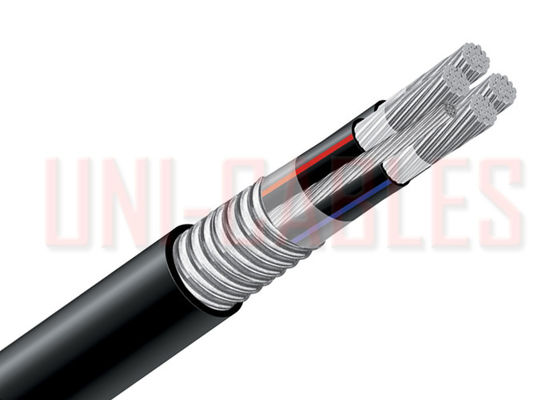

4/C AL 600V XLPE XHHW-2 AIA PVC Power Cable Type MC Building Cable



CONSTRUCTION:

1. Conductor: Class B compact stranded 8000 Series aluminum per ASTM B800 and ASTM B836

2. Insulation: Cross Linked Polyethylene (XLPE) Type XHHW-2

3. Grounding Conductor: Class B compact stranded 8000 Series aluminum per ASTM B800 and ASTM B836

4. Filler: Paper filler (cable size 8 & 6 uses Polypropylene filler)

5. Binder: Polypropylene tape 6. Armor: Aluminum Interlocked Armor (AIA)

7. Overall Jacket: Polyvinyl Chloride (PVC) Jacket





APPLICATIONS AND FEATURES:

600 Volt Type MC power cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10.



SPECIFICATIONS:

• ASTM B800 8000 Series Aluminum Alloy Wire

• ASTM B836 Compact Rounded Stranded Aluminum Conductors

• UL 44 Thermoset Insulated wires And cables

• UL 1569 Metal-Clad Cables

• UL 1685 - Flame Test

• IEEE 1202/FT4 - Vertical Tray Flame Test (70,000 Btu/hr) And ICEA T-29-520 - (210,000 Btu/hr)

• ICEA S-58-679 - Control Cable Conductor Identification Method 4

• ICEA S-95-658 NEMA WC70 - Power cables rated 2000 volts or less for the distribution of electrical energy





DIMENSIONS

Cond. Size Dia Over Cond. Insul. Thickness Dia Over Insul. Dia. Over Armor Ground Jacket Thickness Approx. OD Aluminum Weight Approx. Weight
AWG inches inches inches inches No. x AWG mils inches lbs./MFT lbs./MFT
8 0.134 45 0.224 0.751 1 x 8 50 0.851 168 316
6 0.169 45 0.259 0.835 1 x 8 50 0.935 216 388
4 0.213 45 0.303 0.941 1 x 6 50 1.041 298 502
2 0.268 45 0.358 1.074 1 x 4 50 1.174 409 655
1 0.299 55 0.409 1.197 1 x 4 50 1.297 506 813
1/0 0.336 55 0.446 1.287 1 x 4 50 1.387 600 941
2/0 0.376 55 0.486 1.383 1 x 4 50 1.483 716 1093
3/0 0.423 55 0.533 1.497 1 x 4 50 1.597 864 1285
4/0 0.475 55 0.585 1.622 1 x 2 60 1.742 1070 1573
250 0.520 65 0.650 1.879 1 x 2 60 1.999 1313 1934
350 0.616 65 0.746 2.111 1 x 2/0 60 2.231 1731 2464
500 0.736 65 0.866 2.401 1 x 2/0 75 2.551 2369 3322
600 0.813 80 0.973 2.659 1 x 1 75 2.809 2791 3981
750 0.908 80 1.068 2.888 1 x 1/0 75 3.038 3420 4756
