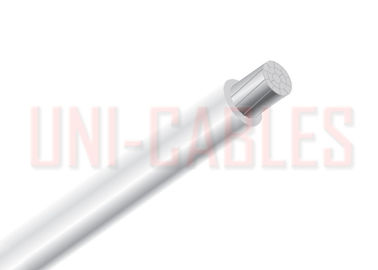

Single White 4 AWG Solar Panel Cable , 2kv AA8030 XLPE Insulated Solar PV Cable

China Single White 4 AWG Solar Panel Cable , 2kv AA8030 XLPE Insulated Solar PV Cable supplier

Large Image :  Single White 4 AWG Solar Panel Cable , 2kv AA8030 XLPE Insulated Solar PV Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001,CCC
Model Number: 2kv PV White

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: 100 Meters oer
Delivery Time: 15-20 working days
Supply Ability: 100km per Month
Contact Now
Detailed Product Description
Conductor: AA8030 Insulation: XLPE
Voltage Rating (Uo/U): 2KV Fixed: -40°C To +90°C
UV: Resistant FR: VW-1

Type PV Red Color Single Conductor 2000V Aluminum Alloy 8030 Conductor XLPE Insulation



CONSTRUCTION:

1. Conductors: Compact Stranded Aluminum Alloy (AA-8030)

2. Insulation: Sunlight Resistant Cross-linked Polyethylene (XLPE) White Color



APPLICATIONS AND FEATURES:

Type PV is available in sizes 6 AWG through 1000 kcmil.

The product is approved for use in solar power applications per the NEC article 690 and is rated 90°C for exposed or concealed wiring in wet or dry locations.

Individual conductors are stranded aluminum alloy covered with a cross-linked polyethylene (XLPE) insulation and is rated for direct burial.

The cable is sunlight resistant, RoHS compliant, passes -40°C cold bend, and is VW-1 rated.



SPECIFICATIONS:

• AA 8176 Stranded Aluminum Alloy Conductors

• ASTM 836 Compact Round Aluminum Conductors

• UL 854 for USE-2

• UL 44 for Type RHW-2

• UL 4703 for Type PV



DIMENSIONS

Conductor Insulation Thickness Average Overall Diameter DC Min. Bend Radius Max Pulling Tension
Size Strands Diameter Resistance
@ 20℃
AWG/kcmil   inches mils inches Ω/1000 ft. inches lbs

6 7 0.169 85 0.339 0.661 2.71 157
4 7 0.213 85 0.383 0.416 3.06 250
1 8 0.299 105 0.509 0.207 4.07 398
1/0 10 0.336 105 0.546 0.164 4.37 1,800
2/0 12 0.376 105 0.586 0.13 4.69 502
3/0 16 0.423 105 0.633 0.103 5.06 502
4/0 19 0.475 105 0.685 0.082 5.48 634
250 22 0.52 120 0.76 0.0694 6.08 634
300 35 0.57 120 0.81 0.0578 6.48 799
350 35 0.616 120 0.856 0.0495 6.85 1,007
400 35 0.659 120 0.899 0.0434 7.19 1,007
500 35 0.736 120 0.976 0.0347 7.81 1,270
600 58 0.813 120 1.053 0.0289 8.42 1,270
750 58 0.908 135 1.178 0.0231 9.42 1,270
1000 58 1.06 135 1.33 0.0173 10.64 1,500
Approx. Weight Allowable Ampacities
In Air+ In Duct++
75℃ 90℃ 75℃ 90℃
lbs./kft amps amps amps amps

55 75 85 50 55
75 100 115 65 75
135 155 175 100 115
164 180 205 120 135
196 210 235 135 150
235 240 270 155 175
284 280 315 180 205
342 315 355 205 230
390 350 395 230 260
452 395 445 250 280
550 425 480 270 305
614 485 545 310 350
806 545 615 340 385
902 620 700 385 435
1166 750 845 445 500
