UL 4703 XLPE Solar PV Wire Photovoltaic Insulation Bare Copper Conductor 2kV

China UL 4703 XLPE Solar PV Wire Photovoltaic Insulation Bare Copper Conductor 2kV supplier

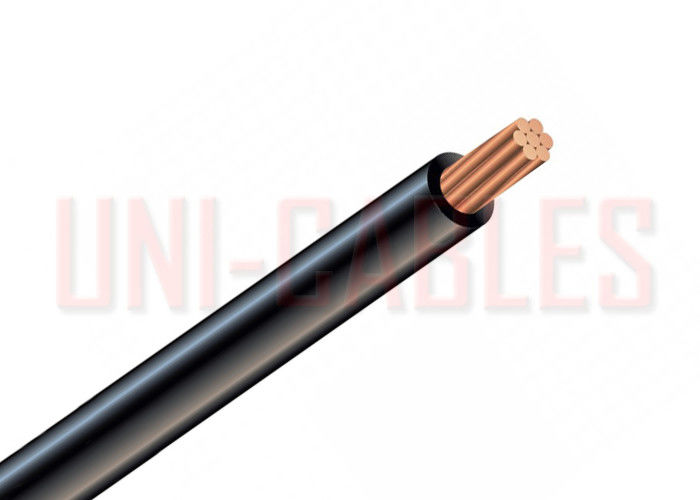

Large Image :  UL 4703 XLPE Solar PV Wire Photovoltaic Insulation Bare Copper Conductor 2kV

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001,CCC
Model Number: CU PV 2KV

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: 100 Meters oer
Delivery Time: 15-20 working days
Supply Ability: 100km per Month
Contact Now
Detailed Product Description
Conductor: ASTM-B3 B8 CU Insulation: XLPE
Voltage Rating (Uo/U): 2000V Temperature Rating: Fixed: -40°C To +105°C
Standard: UL4703 Flame Test: UL VW-1

Solar PV Wire Photovoltaic Wire UL 4703 XLPE Insulation Bare Copper Conductor 2kV







Solar PV Wire (2kV) Construction:

  • Conductor: Stranded bare copper conductor per ASTM B-3, B-8.
  • Insulation: Cross-linked Polyethylene (XLPE)
  • Colors: Black, Green, White, Red. Print on one side with a contrasting ink. An extruded stripe and other colors are available upon request.



Solar Cable Characteristics:

  • Temperature Range:
    • -40°C to 90°C Wet
    • -40°C to 105°C Dry
  • Maximum Operating Voltage: 2000V
  • Sunlight Resistant
  • Gasoline and Oil-Resistant II



Solar Wire (2kV) Ratings:

  • UL Type PV (overall) UL 4703
  • UL 44
  • UL RHW-2 600V Direct Burial
  • Passes UL VW-1 Flame Test



Solar Cable Applications:

  • Solar power applications that require 2,000 volt rating.
  • Grounded interconnection in solar power systems.
  • Ungrounded photovoltaic systems.



DIMENSIONS

AWG Size Conductor Stranding Nom. Insul. Thick. (in) Nom. O.D. (in) Approx LBS/MFT Copper LBS/MFT
18 7 0.075 0.198 22.81 5.4
16 7 0.075 0.208 26.8 7.97
14 7 0.075 0.223 33.73 12.78
12 7 0.075 0.242 43.84 20.2
10 7 0.075 0.266 59.09 32.05
8 7 0.085 0.316 88.12 51.05
6 7 0.085 0.354 124.06 80.9
4 7 0.085 0.402 179.76 128.9
3 7 0.085 0.43 217.86 162.5
2 7 0.085 0.462 265.39 204.9
1 19 0.105 0.542 344.62 258
1/0 19 0.105 0.583 420.75 326
2/0 19 0.105 0.629 514.86 411
3/0 19 0.105 0.68 631.97 518
4/0 19 0.105 0.738 778.47 653
250 37 0.12 0.815 943 772
300 37 0.12 0.87 1113 926
350 37 0.12 0.921 1284 1081
400 37 0.12 0.968 1453 1235
500 37 0.12 1.053 1793 1544
600 61 0.135 1.163 2146 1853
750 61 0.135 1.268 2640 2309


 UL 4703 XLPE Solar PV Wire Photovoltaic Insulation Bare Copper Conductor 2kV
