Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil

China Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil supplier

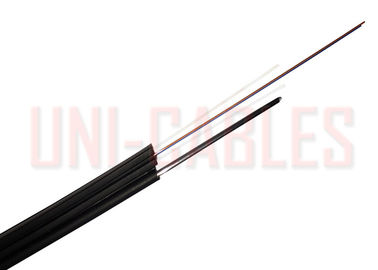

Large Image :  Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil

Product Details:

Place of Origin: China
Brand Name: UNI-Cables
Certification: ISO,TLC
Model Number: FTTH2

Payment & Shipping Terms:

Minimum Order Quantity: 2000Meters
Price: US$0.05-0.17 per Meter
Packaging Details: 2000 meters per Coil
Supply Ability: 300km per day for two core ftth drop cable
Contact Now
Detailed Product Description
Fiber Brand: YOFC Fiber Material: Silicon Dioxide
Fiber Type: G652D, G657A1, G657A2 Fiber Color: Blue,Orange,Green,Brown
Jacket: PVC, LSZH, PE, PU, TPU Fiber Count: 1,2,4,6

Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil



SM 1- 2 Cores Ftth drop optical fiber cable

Outdoor FTTH Fiber Optic Drop cable (1 core, 2 core, 4 core)



Characteristics

Excellent stripping performance of FTTH optical fiber Cable diameter and bending radius small,It can

installation freely in narrow room



Geometrical Characteristics

Cable Type 1 2 4 6
Cable Dimension(mm) (2.0±0.2)*(5.0±0.2) (2.0±0.2)*(5.0±0.2) (2.0±0.2)*(5.5±0.2) (2.0±0.2)*(6.0±0.2)
Cable Weight (kg/km) 20 20 21 22



Mechanical Characteristics

Tensile strength(N) Long Term 60
Short Term 120
(N/100mm) Long Term 300
Short Term 1000

(CM)

Bending Radius(CM)

 Dynamic 35xD
Static 15xD

Fiber

Fiber Type(core/cladding dimension) 9/125,50/125,62.5/125



Transmission Characteristics

  SM 50/125 62.5/125
  1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(db/km) ≤0.4/0.3 ≤3.0/1.0 ≤3.5/1.0
Minimum Bandwidth(MHz·km) ----------------------- ≥500/1000 ≥200/600

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃





Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km CoilFtth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil
