4 6 12 24 36 48 96 core single mode indoor fiber optic distribution breakout Cables

4 6 12 24 36 48 96 core single mode indoor fiber optic distribution breakout Cables

The fiber cable could be pre-connected, is widely applied as access building cable, interconnect between equipment, etc.

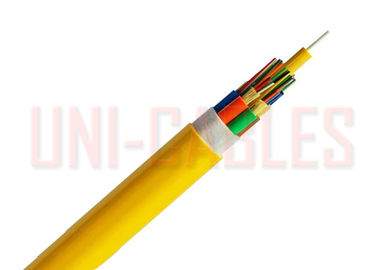

The breakout type cable contains several fibers, each with its own jacket and all of them surrounded by one common jacket. Tight-buffered simplex cords are surrounded with aramid yarn and jacket, and then stranded around a central FRP member.

1 –Fiber count-------4/6/8/12/16/24/48.
2 – Characteristic of tight buffered-----OD: 0.87±0.05mm.
3 –Aramid yarn for round strength.
4 –Inner jacket-----OD: 2.0±0.05mm.
5 – Central strength member: FRP.
6 – Water barrier tape.
7-Out jacket: PVC,LSZH,Hytrel,Nylon12 or other contracted material.

Cable Structure
