MI CIA LSZH Mineral Insulated Cable Copper Interlocked Fire Resistance

China MI CIA LSZH Mineral Insulated Cable Copper Interlocked Fire Resistance supplier

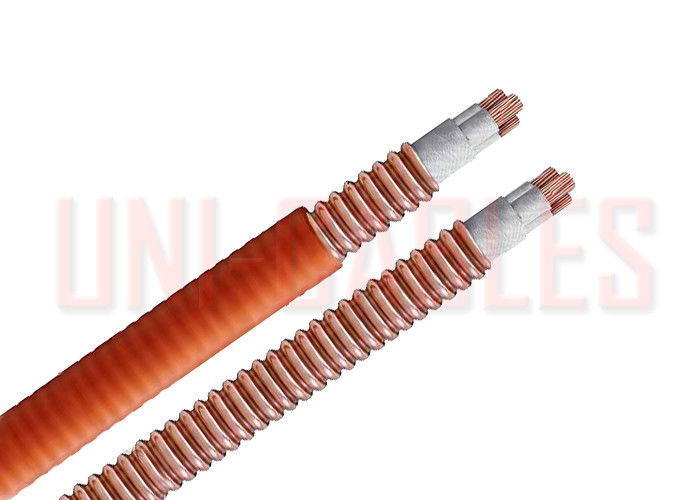

Large Image :  MI CIA LSZH Mineral Insulated Cable Copper Interlocked Fire Resistance

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: CIA

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: In Wooden reels
Delivery Time: 15-20 working days
Supply Ability: 10000 Meters per Week
Contact Now
Detailed Product Description
Voltage Rating (Uo/U): 0.6/1KV Temperature Rating: -10°C To 150°C
Conductor: Class2 Stranded Copper Insulation: Inorganic Insulating Material
Sheath: Copper Interlocked Jacket: LSZH

MI Cable Mineral Insulated Cable Copper Interlocked Fire Resistance Cable





APPLICATION

Such cable body doesn’t burn, in case of fire, which will not produce any toxic or harmful gases, it can keep the circuit integrity at the scene of the fire, which can continue to supply electricity to provide emergency lighting and fire-fighting equipments, therefore, such new product is widely used in high-rise even super high-rise buildings, crowded places, large programs, which is also used in such complicated installation environment for metallurgy, mine etc



Products Types:Cu/MGT/Cu (YTTW/BTTZ)



Products Properties:

--The cable will not produce any toxic or harmful gases during the production and using process, which belongs to low smoke halogen-free flame retardant products, environmentally friendly.

--The long-term working temperature of cable conductor should be lower than 120 °C, laying environment temperature should be higher than -20°C.

--When the cable is installed, it needn’t wear any tube separately because of its unique waterproof and shockproof characteristics, and also has good rat-proof, termite-proof anti-radiation performances, which ensure the cable’s stability, long life and durability.

--The cable has high safety and good resistance to overload, besides, which has features of anti-explosio, anti-corrosion etc., but also the high-strength nechanical performances.





DIMENSIONS

Conductor Cross-section Copper Sheath Corss-section Insulation Thickness Approx. Outer Diameter Conductor Resistance
mm2 mm2 mm mm Ω/km
4x6 20 0.8 12.6 3.08
4x10 31.9 1 16.9 1.83
4x16 43.2 1 19.2 1.5
4x25 58.1 1 22.2 0.727
4x35 74.9 1.1 24.9 0.524
4x50 85.8 1.2 25 0.387
4x70 99.5 1.2 28.2 0.268
4x95 113.9 1.2 32.2 0.193
4x120 139.6 1.2 35 0.153



MI CIA LSZH Mineral Insulated Cable Copper Interlocked Fire Resistance
