ASTM Standard All Aluminium Alloy Conductor , ASTM-B399 Bare Aluminum Overhead Conductor

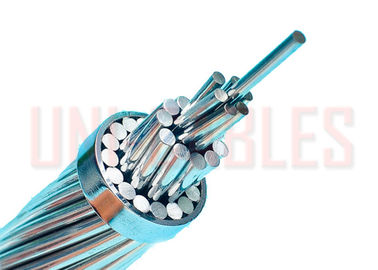

: Large Image : ASTM Standard All Aluminium Alloy Conductor , ASTM-B399 Bare Aluminum Overhead Conductor

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	AAAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 Metric-Tons
Price:	USD$3100-3300 Per MT
Packaging Details:	1 MT per Wooden Reel
Delivery Time:	15-20 days
Supply Ability:	100000MT per Month

Contact Now

Detailed Product Description

Conductor:	AL6201-T81	Voltage:	High Voltage
Size:	16-1120 Mm2	Standard:	IEC Specification
No. Of Wires:	7-37	Resistivity:	52.5% IACS

ASTM Standard AAAC Conductor ASTM-B399 Bare Aluminum Overhead Conductor

APPLICATION

AAAC have been widely used in power transmission lines with various voltage levels,and also used in power lines across great rivers,heavy ice area,and other places special geographical characteristics.The cables have excellent advantages of high strength,large current carrying capacity and good catenary property as well as wear-resistance,anti-crush and corrosion-proof with simple structure,convenient installation and maintenance,low cost for the line,large transmission capacity.

Specifications

AAAC bear conductor meets or exceeds the following ASTM Specifications:

B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose.

B-399 Concentrical-Lay-Stranded 6201-T81 Aluminum Alloy Conductors

CABLE STANDARDS
ASTM-B399

DIMENSIONS

ASTM Standard All Aluminum Alloy 6201-T81 Conductors ( AAAC )

Code Name	Total Area		1350 Grade Equivalent (Approx)	Stranding	Conductor Nominal Diameter	Nominal Weight	Rated Strength	Maximum DC resistance at 20 ℃
Code Name	AWG or MCM	mm2	AWG or MCM	No/ mm	mm	kg/km	kN	Ω /km
6	13.28	9	7	7/1.554	4.66	36	4.206	2.523
4	21.14	7	11	7/1.961	5.88	58	6.698	1.5844
2	33.65	5	18	7/2.474	7.42	92	10.66	0.9955
0	53.48	3	28	7/3.119	9.36	147	16.94	0.6263
2/0	67.46	2	35	7/3.503	10.51	185	20.4	0.4965
3/0	85	1	45	7/3.932	11.8	233	25.7	0.3941
4/0	107.3	1/0	56	7/4.417	13.25	294	32.44	0.3123
250	126.6	133	66	19/2.913	14.57	347	38.86	0.2645
300	152.1	159	80	19/3.193	15.97	417	46.69	0.2202
350	177.3	186	93	19/3.447	17.24	486	51.94	0.1889
400	202.7	212	106	19/3.686	18.43	556	59.39	0.1652
450	228	239	120	19/3.909	19.55	626	66.8	0.1469
500	253.3	265	133	19/4.12	20.6	695	74.2	0.1322
550	278.5	292	146	37/3.096	21.67	764	83.65	0.1203
600	303.7	318	159	37/3.233	22.63	833	91.21	0.1103
650	329.2	345	173	37/3.366	23.56	903	94.38	0.1017
700	354.6	371	186	37/3.493	24.45	973	101.63	0.09448
750	380.2	398	200	37/3.617	25.32	1043	108.98	0.08811
800	405.2	425	213	37/3.734	26.14	1112	116.14	0.08268
900	456.2	478	240	37/3.962	27.73	1252	130.76	0.07343
1000	506.8	531	266	37/4.176	29.23	1390	145.27	0.0661
