AS3607 Bare Overhead ACSR Conductor Distribution Cable QUINCE ALMOND

China AS3607 Bare Overhead ACSR Conductor Distribution Cable QUINCE ALMOND supplier

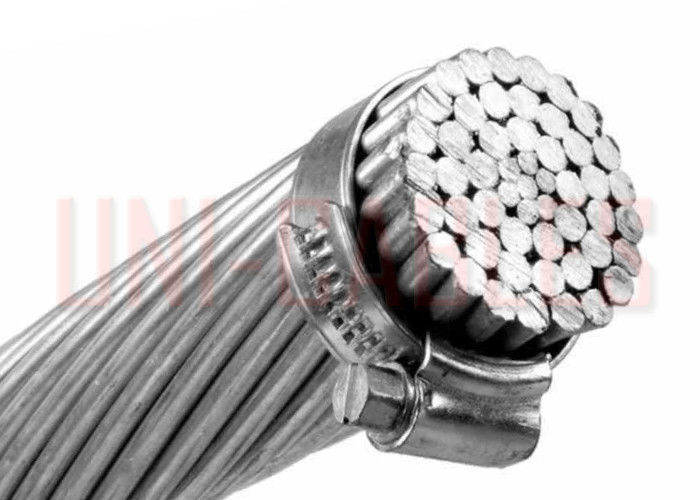

Large Image :  AS3607 Bare Overhead ACSR Conductor Distribution Cable QUINCE ALMOND

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: ACSR

Payment & Shipping Terms:

Minimum Order Quantity: 1 Metric-Tons
Price: Negotiable
Packaging Details: 1 MT per Wooden Reel
Delivery Time: 15-20 days
Supply Ability: 100000MT per Month
Contact Now
Detailed Product Description
Conductor: Aluminum 1350 Core: GSW
Size: 10-1250mm2 Standard: AS3607
No. Of Wires: 7-91 Wires Resistivity: 61% IACS

AS3607 ACSR Conductor Code Name QUINCE ALMOND APPLE CHERRY GRAPE LIME PEACH



Introductions:



Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support.

ACSR conductors combine the light weight and good conductivity of aluminum with the high tensile strength and ruggedness of steel.

In line design, this can provide higher tensions, less sag and longer span lengths than obtainable with most other types of overhead conductors.

The steel strands are added as mechanical reinforcement.

ACSR is a composite concentric-lay-stranded conductor. The steel strand or strands form the central core of the conductor, around which is stranded one or more layers of aluminum wires.



Electrical Properties:



Density@20oC Aluminium: 2.703 kg/dm
  Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C Aluminium: 0.00403 (°C)
Resistivity@20°C Aluminium: Should not exceed 0.028264
Linear Expansivity Aluminium: 23 x10 (°C)
  Galvanised Steel: 11.5 x10 (1/°C)



Service Conditions:



Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m^2
Seismic Acceleration 0.12 - 0.05g
Isokeraunic Level 10 – 18
Relative Humidity 5 – 100%



Structure :



AS3607 Bare Overhead ACSR Conductor Distribution Cable QUINCE ALMOND





DIMENSIONS



AS 3607
Product code Strand/wire Cross sectional area Nominal O.D.
mm
Approximate mass kg/km Calculated minimum breaking load kN Final modulus of elasticity GPa Coefficient of linear expansion
/°C x 10-6
Alum No/mm Steel No/mm Alum mm2 Steel mm2 Total mm2
QUINCE 3/1.75 4/1.75 7.2 9.6 16.8 5.3 96 12.7 136 13.9
RAISIN 3/2.50 4/2.50 14.7 19.6 34.3 7.5 193 24.4 136 13.9
SUPER SULTANA 3/3.00 4/3.00 21.2 28.3 49.5 9.0 280 35.0 136 13.9
SULTANA 4/3.00 3/3.00 28.3 21.2 49.5 9 242 28.3 119 15.2
WALNUT 4/3.75 3/3.75 44.2 33.1 77.3 11.3 379 43.9 119 15.2
ALMOND 6/2.50 1/2.50 29.2 4.9 34.4 7.5 119 10.5 79 19.3
APRICOT 6/2.75 1/2.75 35.6 5.9 41.5 8.3 144 12.6 79 19.3
APPLE 6/3.00 1/3.00 42.4 7.1 49.5 9 171 14.9 79 19.3
BANANA 6/3.75 1/3.75 66.3 11.0 77.3 11.3 268 22.8 79 19.3
CHERRY 6/4.75 7/1.60 106 14.1 120 14.3 404 33.2 76 19.9
GRAPE 30/2.50 7/2.50 147 34.4 182 17.5 677 63.5 80 19.4
LEMON 30/3.00 7/3.00 212 49.5 262 21 973 90.4 80 19.4
LYCHEE 30/3.25 7/3.25 249 58.1 307 22.8 1140 105 80 19.4
LIME 30/3.50 7/3.50 289 67.3 356 24.5 1320 122 80 19.4
MANGO 54/3.00 7/3.00 382 49.5 431 27.0 1440 119 68 20.6
ORANGE 54/3.25 7/3.25 448 58.1 506 29.3 1690 137 68 20.6
OLIVE 54/3.50 7/3.50 519 67.3 587 31.5 1960 159 68 20.6
PAW PAW 54/3.75 19/2.25 596 75.5 672 33.8 2240 178 70 20.7
PEACH 54/4.75 19/2.85 957 121 1078 42.8 3600 284 70 20.7
