4 Core High Temperature Inorganic Material Insulated Fire Survival Cable

China 4 Core High Temperature Inorganic Material Insulated Fire Survival Cable supplier

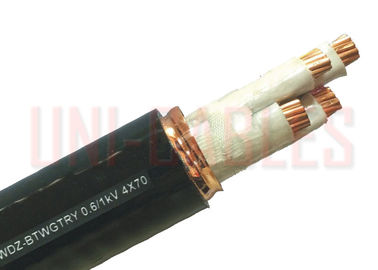

Large Image :  4 Core High Temperature Inorganic Material Insulated Fire Survival Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: MIC 4

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: In Wooden reels
Delivery Time: 15-20 working days
Supply Ability: 10000 Meters per Week
Contact Now
Detailed Product Description
Voltage Rating (Uo/U): 0.6/1KV Temperature Rating: -10°C To 150°C
Conductor: Class2 Stranded Copper Insulation: Inorganic Insulating Material
Sheath: Copper Interlocked Jacket: LSZH

MI Cable Mineral Insulated Cable Copper Interlocked Fire Resistance Cable





APPLICATION

Such cable body doesn’t burn, in case of fire, which will not produce any toxic or harmful gases, it can keep the circuit integrity at the scene of the fire, which can continue to supply electricity to provide emergency lighting and fire-fighting equipments, therefore, such new product is widely used in high-rise even super high-rise buildings, crowded places, large programs, which is also used in such complicated installation environment for metallurgy, mine etc



Products Types:Cu/MGT/Cu (YTTW/BTTZ)



1. Cable conductor: Class 2 Stranded Copper

2. Insulation layer : High-temperature resistant inorganic insulating materials
3. Copper sheath: Flexible Copper Interlocked Armoured
4. Outer sheath: LSZH



Properties

1. Excellent fireproof property, the fireproof rating not only satisfies the national standard GB1266.6: category A 950 ℃ 90 min, hut also meet up with the U. K. standard BS 187-1994: Class A 650℃ 3h: class B 750℃ 3h; class C 950 ℃ 3h meanwhile, it also is able to withstand the water spraying or mechanical strike;



2. Long continuous length: the length can satisfy the length demand for power supply in spite of single-core or multi-core cable, and continuous length of each cable can be as long as 1000 m.



3. Large cross sectional area, sectional area of single-core cable reaches 630mm2 and that of multi-core cable reaches 70 mm2.



4. Property of flexibility, the cable can be wound on the cable reeI with the bending radius 6-10D, (D is the outer diameter of cable):



5. Smoke-free non-toxicity when burning, it adopts inorganic materials (non-inflammable materials) for insulation its burning would not produce any harmful gas or secondary pollution it is an environmental protection product;



DIMENSIONS

Conductor Cross-section Copper Sheath Corss-section Insulation Thickness Approx. Outer Diameter Conductor Resistance
mm2 mm2 mm mm Ω/km
4x6 20 0.8 12.6 3.08
4x10 31.9 1 16.9 1.83
4x16 43.2 1 19.2 1.5
4x25 58.1 1 22.2 0.727
4x35 74.9 1.1 24.9 0.524
4x50 85.8 1.2 25 0.387
4x70 99.5 1.2 28.2 0.268
4x95 113.9 1.2 32.2 0.193
4x120 139.6 1.2 35 0.153



4 Core High Temperature Inorganic Material Insulated Fire Survival Cable
