XLPE NF C 33 209 LV ABC Aerial Power Cable , 600V Service Bundled Conductors

China XLPE NF C 33 209 LV ABC Aerial Power Cable , 600V Service Bundled Conductors supplier

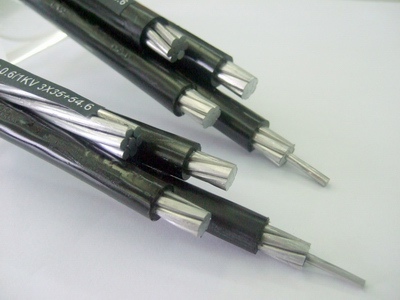

Large Image :  XLPE NF C 33 209 LV ABC Aerial Power Cable , 600V Service Bundled Conductors

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: ABC

Payment & Shipping Terms:

Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: 2km per reel
Delivery Time: 15-20 Working Days
Supply Ability: 1000000 per week
Detailed Product Description
Conductor: Aluminum 1350-H19 Insulation: XLPE
Voltage: 600V Temperature Rating: 0°C To 75°C

NF C 33 209 LV-ABC Aerial Bundled Cable 600V Service Bundled Conductors



APPLICATION

The power cables with cross-linked polyethylene (XLPE) insulation for overhead lines are designed for electrical installations with alternating power networks with nominal voltage Uo/U 0.6/1 kV or in direct power networks with maximum voltage according to land 0.9 кV.



The cables with supporting (bearing) zero conductors are used for building networks in city and urban areas and the self-supporting type cables are for building distribution networks in these areas.



Cables for overhead installations may be used in different types of installations: on free hanging facades; between posts; on fixed facades; trees and poles. Interception of forest areas without the need of clearance and maintenance of openings is allowed.

-Cables with supporting zero conductor, the whole bundle is suspended and carried by the supporting conductor, which is made of aluminum compound.

- Self-supporting construction, suspension and carrying of the whole bundle is done by the phase insulated conductors.

Bundles can include one or two additional conductors for public lighting and control pair.





SPECIFICATIONS

Operating temperature:                     80оС

Short-circuit temperature:                 130оС

Nominal voltage АС:                          Uo/U 0.6/1 kV

Highest system voltage AC, not more than:1.2 kV

Test voltage

                                                          АC -5 min 4 kV

                                                          DC - 15 min 10 kV

Bending radius, min.                         18xD cable

Temperature of laying no less than   - 10оС

Conductor resistance at 20оС:

                                                         16 - 1.91 Ω/км 50 - 0.641Ω/км

                                                         25 - 1.20 Ω/км 70-0.443 Ω/км

                                                         35 - 0.868Ω/км 95 - 0.320Ω/км

                                                         54.6Alm - 0.63Ω/км;70Alm- 0.5Ω/км  95Alm - 0.343Ω/км



Supported neutral breaking strength min.

                                                         for 54.6 - 16.6кN

                                                         for 70 - 20.50kN

                                                         for 95 - 27.50кN





DIMENSIONS

Number of conductors and nominal cross section Thickness of insulation M/N/R Diamete r of bundle approx. Allowed current in power supply networks Allowed current in distribution networks Аl/R
Mass of Аl cores approx. Cable weight approx.
n х mm2 mm mm А А kg/km kg/km
        walls/air/facades

2x16 1.2 15 - 72 / 93 / 83 91 125
2x25 1.4 18 - 95 / 122 / 111 142 165
4x16 1.2 18 - 63 / 83 / 75 183 260
4x25 1.4 22 - 83 / 111 / 99 285 395

3x25+54.6Alm 1.4/1.6 30 112 - 369 505
3x25+54.6Alm+Kx16 1.4/1.6/1.2 30 112 / 83 - 460 635
3x35+54.6Alm 1.6/1.6 33 138 - 455 615
3x35+54.6Alm+Kx16 1.6/1.6/1.4 33 138 / 83 - 546 745
3x50+54.6Alm 1.6/1.6 36 168 - 583 725
3x50+54.6Alm+Kx16 1.6/1.6/1.2 36 168 / 93 - 674 860
3x50+54.6Alm+Kx25 1.6/1.6/1.4 36 168 / 111 - 725 925
3x70+54.6Alm 1.8/1.6 37 213 - 754 950
3x70+54.6Alm+Kx16 1.8/1.6/1.2 40 213 / 83 - 845 1080
3x70+54.6Alm+Kx25 1.8/1.6/1.4 40 213 / 111 - 896 1150

3x70+70Alm 1.8/1.5 41 213 - 798 984
3x70+70Alm+Kx16 1.8/1.5/1.2 41 213 / 83 - 889 1115
3x70+70Alm+Kx25 1.8/1.5/1.4 41 213 / 111 - 940 1185

3x95+54.6Alm 1.8/1.6/ 44 258 - 967 1195
3x95+54.6Alm+Kx16 1.8/1.6/1.2 44 258 / 83 - 1059 1325
3x95+54.6Alm+Kx25 1.8/1.6/1.4 44 258 / 111 - 1110 1355

3x95+70Alm 1.8/1.5 44 258 - 1011 1355
3x95+70Alm+Kx16 1.8/1.5/1.2 44 258 / 83 - 1102 1615
3x95+70Alm+Kx25 1.8/1.5/1.4 44 258 / 111 - 1154 1485
3x120+70Alm 1.8/1.5 46 300 - 1225 1445
3x120+70Alm+Kx16 1.8/1.5/1.2 46 300 / 83 - 4828 1575
3x120+70Alm+Kx25 1.8/1.5/1.4 46 300 /111 - 1368 1610

3x120+95Alm 1.8/1.6 47 300 - 1296 1535
3x120+95Alm+Kx16 1.8/1.6/1.2 47 300 / 83 - 1387 1660
3x120+95Alm+Kx25 1.8/1.6/1.4 47 300 / 111 - 1439 1735

3x150+70Alm 1.7/1.5/ 48 344 - 1482 1670
3x150+70Alm+Kx16 1.7/1.5/1.2 48 344 / 83 - 1573 1795
3x150+70Alm+Kx25 1.7/1.5/1.4 48 344 / 111 - 1624 1870
