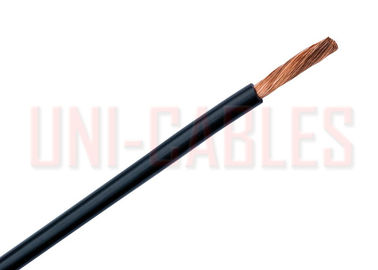

Light Blue PVC Tri Rated Wire , Rectifier Equipment Flame Retardant Cable
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Conductor: | Class 5 Flexible Copper Conductor | Insulation: | PVC (Polyvinyl Chloride) |
|---|
Tri-Rated Wire PVC Electrical Cable H05V2-K / H07V2-K / BS 6231 UL1015
APPLICATION
High temperature, flame retardant cable designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers. Tri-rated cable is sometimes referred to as BS 6231 cable, H07V2-K or panel wire.
CABLE STANDARDS
BS EN 50525-2-31* BS 6231 Type CK, UL Subj.758,
CSA C22.2 No. 210 (HD 21.7 S2) #LL246095,
BS EN/IEC 60332, BS EN 60228
CHARACTERISTICS
Voltage Rating (Uo/U)
UL, CSA: 600/1000V
BS 6231: 600/1000V
BS EN 50525-2-31: 300/500V, 450/750V
Temperature Rating
UL, CSA: +105°C
BS 6231: +90°C
Minimum: -15°C
Minimum Bending Radius
6 x overall diameter
Sheath Colour
Red Black Blue Light Blue Dark Blue Yellow
Green/Yellow Grey Brown Orange White Violet
Green Pink
DIMENSIONS
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | APPROXIMATE AWG | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm² | mm | mm | kg/km | ||
| 1 | 0.5 | 21 | 0.8 | 2.7 | 11 |
| 1 | 0.75 | 19 | 0.8 | 2.85 | 15 |
| 1 | 1 | 18 | 0.8 | 3 | 18 |
| 1 | 1.5 | 16 | 0.8 | 3.3 | 23 |
| 1 | 2.5 | 14 | 0.8 | 3.75 | 35 |
| 1 | 4 | 12 | 0.8 | 4.35 | 48 |
| 1 | 6 | 10 | 0.8 | 4.85 | 69 |
| 1 | 10 | 8 | 1 | 6.3 | 117 |
| 1 | 16 | 6 | 1 | 8.1 | 191 |
| 1 | 25 | 4 | 1.2 | 9.4 | 281 |
| 1 | 35 | 2 | 1.2 | 10.9 | 389 |
| 1 | 50 | 1 | 1.4 | 13.1 | 560 |
| 1 | 70 | 2/0 | 1.4 | 15.1 | 774 |
| 1 | 95 | 3/0 | 1.6 | 16.1 | 991 |
| 1 | 120 | 4/0 | 1.6 | 17.9 | 1231 |
| 1 | 150 | 250 MCM | 1.8 | 20.2 | 1534 |
| 1 | 185 | 350 MCM | 2 | 22.85 | 1878 |
| 1 | 240 | 450 MCM | 2.2 | 24.4 | 2381 |
Colour Codes
| COLOUR | Black | Green | Blue | Light Blue | Dark Blue | Grey | Green/ Yellow | Orange | Red | Pink | Yellow | Violet | Brown | White |
| CODE | BK | GN | BL | LTBL | DKBL | GR | GY | OR | RD | PK | YW | VI | BR | WH |
CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables
| NOMINAL CROSS SECTIONAL AREA |
MAXIMUM DIAMETER OF WIRES IN CONDUCTOR |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC |
| mm² | mm | Plain Wires ohms/km |
| 0.5 | 0.21 | 39 |
| 0.75 | 0.21 | 26 |
| 1 | 0.21 | 19.5 |
| 1.5 | 0.26 | 13.3 |
| 2.5 | 0.26 | 7.98 |
| 4 | 0.31 | 4.95 |
| 6 | 0.31 | 3.3 |
| 10 | 0.41 | 1.91 |
| 16 | 0.41 | 1.21 |
| 25 | 0.41 | 0.78 |
| 35 | 0.41 | 0.554 |
| 50 | 0.41 | 0.386 |
| 70 | 0.51 | 0.272 |
| 95 | 0.51 | 0.206 |
| 120 | 0.51 | 0.161 |
| 150 | 0.51 | 0.129 |
| 185 | 0.51 | 0.106 |
| 240 | 0.51 | 0.0801 |
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity and Voltage Drop
| NOMINAL CROSS SECTIONAL AREA mm² |
CURRENT RATING (PEAK) Amps |
VOLTAGE DROP mV/A/m |
| 0.5 | 11 | 46 |
| 0.75 | 14 | 31 |
| 1 | 17 | 22 |
| 1.5 | 21 | 15 |
| 2.5 | 30 | 9.1 |
| 4 | 41 | 5.7 |
| 6 | 53 | 3.8 |
| 10 | 75 | 2.2 |
| 16 | 100 | 1.4 |
| 25 | 136 | 0.89 |
| 35 | 167 | 0.64 |
| 50 | 204 | 0.45 |
| 70 | 259 | 0.32 |
| 95 | 321 | 0.24 |
| 120 | 374 | 0.19 |
| 150 | 429 | 0.16 |
| 185 | 496 | 0.13 |
| 240 | 595 | 0.1 |
