Electric Plants PVC Insulated Power Cable , NAYY J Aluminum Conductor Cable

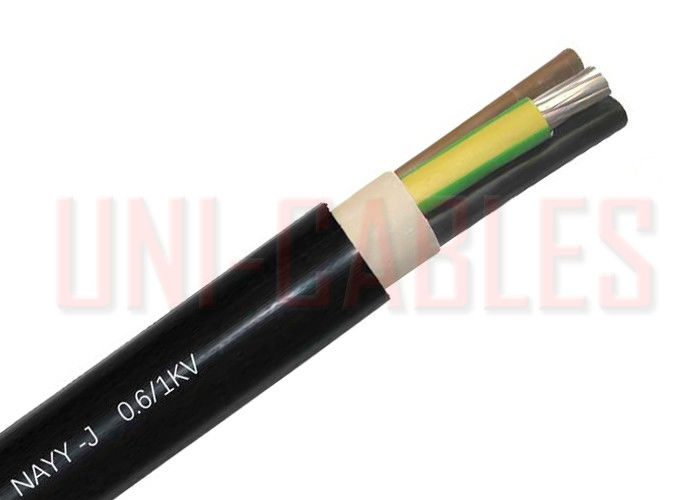

: Large Image : Electric Plants PVC Insulated Power Cable , NAYY J Aluminum Conductor Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	NAYY-J

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	Negotiable
Packaging Details:	200M in Steel Reels
Delivery Time:	15-20 working days
Supply Ability:	7000 Meters per Week

Contact Now

Detailed Product Description

UV-resistant:	Yes	Conductor Material:	Aluminium
Outdoor Use:	Yes	Type:	Low Voltage
Operating Temperature:	-5 - +70 °C	Bending Radius:	10 X DA

NAYY-J / -O Low Voltage Cable Aluminum Conductor PVC Insulated Power Cable

APPLICATION

Distribution power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in industrial plants, metropolitan networks and in other electric plants.

CONSTRUCTION

Conductor of solid aluminium wires, round or sector shape

- PVC insulation

- wrapped thermoplastic tapes filler

- PVC sheath

Standard	VDE 0276-603
Direct burial	yes
VDE	yes
CPR-performance	Eca
Conductor material	aluminium
Insulation	PVC DIV 4
Sheathing material	PVC DMV 5
Colour outer sheath	black
Flame-retardant	VDE 0482-332-1-2/IEC 60332-1-2
UV-resistant	yes
For outdoor use	yes
Maximum permitted conductor temperature	70 °C
Permitted outer cable temperature, fixed	70 °C
Permitted outer cable temperature, in motion/during installation	-5 - +70 °C

DIMENSIONS

Number of cores x conductor cross-section	Construction	External diameter	Insulation thickness	Sheath thickness	Conductor resistance at 20 °C	Short circuit current 1s	Cable weight
		min - max.	nom.	nom.	max.	nom.
N x mm²		mm	mm	mm	Ω/km	kA	kg/km
1 x 50	RM	14 - 17	1,4	1,8	0,641	3,80	298
1 x 70	RM	16 - 19	1,4	1,8	0,443	5,32	383
1 x 95	RM	18 - 21	1,6	1,8	0,320	7,22	490
1 x 120	RM	19 - 22	1,6	1,8	0,253	9,12	575
1 x 150	RM	21 - 25	1,8	1,8	0,206	11,40	695
1 x 185	RM	23 - 27	2,0	1,8	0,164	14,10	845
1 x 240	RM	26 - 30	2,2	1,8	0,125	18,20	1100
1 x 300	RM	28 - 32	2,4	1,9	0,100	22,80	1379
1 x 400	RM	32 - 37	2,6	2,0	0,0778	27,20	1615
1 x 500	RM	35 - 40	2,8	2,1	0,0605	34,00	2015
1 x 630	RM	41 - 45	2,8	2,2	0,0469	42,84	2472

4 x 16	RE	21 - 25	1,0	1,8	1,91	1,21	750
4 x 25	RE, RM	25 - 32	1,2	1,8	1,200	1,90	950
4 x 35	RE, SM	27 - 34	1,2	1,8	0,868	2,66	1141
4 x 50	SE, SM	29 - 36	1,4	1,9	0,641	3,80	1242
4 x 70	SE, SM	33 - 40	1,4	2,1	0,443	5,32	1631
4 x 95	SE, RM	38 - 45	1,6	2,2	0,320	7,22	2063
4 x 120	SE, SM	41 - 49	1,6	2,4	0,253	9,12	2538
4 x 150	SE, SM	46 - 54	1,8	2,5	0,206	11,40	3090
4 x 185	SE, SM	51 - 59	2,0	2,7	0,164	14,10	3838
4 x 240	SE, SM	57 - 65	2,2	2,9	0,125	18,20	4863

4 x 16+2,5	RM+RE	21,6	1,0	1,8	1,91	1,21	781
4 x 25+2,5	RM+RE	28	1,2	1,8	1,200	1,90	981
4 x 35+2,5	SM+RE	31	1,2	1,8	0,868	2,66	1172
4 x 50+2,5	SM+RE	35	1,4	1,9	0,641	3,80	1273
4 x 70+2,5	SM+RE	38	1,4	2,1	0,443	5,32	1662
4 x 95+2,5	SM+RE	42	1,6	2,2	0,320	7,22	2094
4 x 120+2,5	SM+RE	46	1,6	2,4	0,253	9,12	2569
4 x 150+2,5	SM+RE	49	1,8	2,5	0,206	11,40	3121
4 x 185+2,5	SM+RE	54	2,0	2,7	0,164	14,10	3869
4 x 240+2,5	SM+RE	59	2,2	2,9	0,125	18,20	4894
