600 1000V Unarmoured Low Voltage Cable N2XY Acc . DIN VDE 0276 Black For Electricity Supply

Certification
Good quality Medium Voltage Cable for sales
Good quality Medium Voltage Cable for sales
I'm Online Chat Now

600 1000V Unarmoured Low Voltage Cable N2XY Acc . DIN VDE 0276 Black For Electricity Supply

China 600 1000V Unarmoured Low Voltage Cable N2XY Acc . DIN VDE 0276 Black For Electricity Supply supplier

Large Image :  600 1000V Unarmoured Low Voltage Cable N2XY Acc . DIN VDE 0276 Black For Electricity Supply

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: N2XY

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Price: Negotiable
Packaging Details: 200M in Steel Reels
Delivery Time: 15-20 working days
Supply Ability: 7000 Meters per Week
Detailed Product Description
Test Voltage: 4KV Filler: Wrapped Thermoplastic Tapes
Insulation: XLPE DIX3 Sheathing Material: PVC DMV 5
Behaviour In Fire: IEC 60332-1 Bending Radius: 15 X DA

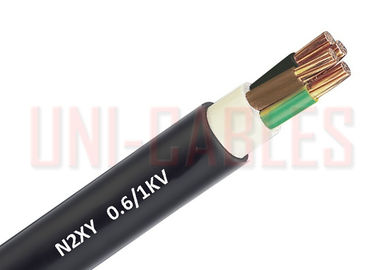

N2XY Low Voltage Cable 600/1000V CU/XLPE/PVC Power Cable Acc. To DIN VDE 0276





APPLICATION

N2XY Power Cable are unarmoured power and control cables used for electricity supply in Low Voltage (LV) installation systems with a voltage rating of 600/1000V.



These cables can be used for fixed installation in buildings - fixed on cable trays, in free air, within conduits, or in walls – or for underground use in direct burial and in damp environments where there is no risk of mechanical damage.





CONSTRUCTION

Conductor:Cu, class 1 or 2

class 1:solid, round (RE)

class 2:multi wire stranded, round (RM) or sector (SM)

Insulation:XLPE-compound DIX 3

Filler:Wrapped thermoplastic tapes

Sheath:PVC DMV 5

Sheath colour:Black





Technical data

Temperature range:

during installation:                                 -5 °C up to +50 °C

fixed installed:                                       -20 °C up to +70 °C

at short circuit of max. 5s:                     up to 250 °C

Nominal voltage:                                 Uο/U = 0,6/1 kV

Test voltage:                                        4 kV

Max. operating voltage in three-phase systems:1,2 kV

Maximal tensile strength:                   50 N/mm²

Behaviour in fire:                                 IEC 60332-1

Minimal inner bending radius:

single core:                                            15D

multi core:                                              12D







DIMENSIONS

Nom. Cross Section Area Overall Diameter Cable Weight DC Resistance at 20°C AC Resistance at 90°C Current - Carrying Capacity at 30° C Short circuit current at 1 sec
approx. approx. in air in ground
mm2 mm kg/km Max. (Ω/km) Max. (Ω/km) Max. (A) Max. (A) Max. (kA)
1.5 5.9 48 12.1 15.429 26 33 0.21
2.5 6.4 61 7.41 9.449 35 43 0.36
4 6.9 80 4.61 5.878 46 55 0.57
6 7.5 102 3.08 3.927 58 68 0.86
10 8.5 147 1.83 2.334 80 91 1.43
16 9.5 207 1.15 1.466 107 117 2.29
25 11.3 315 0.727 0.927 145 151 3.58
35 12.4 410 0.524 0.668 178 180 5.01
50 14.1 555 0.387 0.494 220 214 7.15
70 16.1 759 0.268 0.342 279 261 10.01
95 18.1 1,006 0.193 0.247 346 312 13.59
120 19.9 1,244 0.153 0.196 404 355 17.16
150 22.5 1,518 0.124 0.16 466 397 21.45
185 25 1,917 0.0991 0.128 543 449 26.46
240 28 2,504 0.0754 0.099 650 519 34.32
300 30.5 3,039 0.0601 0.08 751 584 42.9
400 34.5 3,892 0.047 0.064 875 660 57.2
500 38.5 4,981 0.0366 0.052 1018 744 71.5
630 43.5 6,478 0.0283 0.043 1179 834 90.09
800 48 8,134 0.0221 0.036 1339 921 114.4
