Class 1 PVC Inuslated Multicore Armoured Cable , NYRGY J Power Stations Low Voltage Wiring

China Class 1 PVC Inuslated Multicore Armoured Cable , NYRGY J Power Stations Low Voltage Wiring supplier

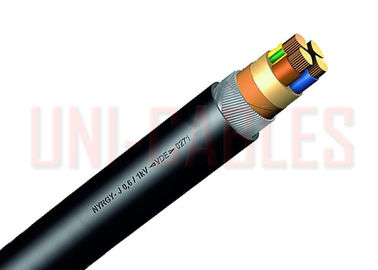

Large Image :  Class 1 PVC Inuslated Multicore Armoured Cable , NYRGY J Power Stations Low Voltage Wiring

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: NYRGY-J

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Price: Negotiable
Packaging Details: 200M in Steel Reels
Delivery Time: 15-20 working days
Supply Ability: 7000 Meters per Week
Detailed Product Description
Sheathing Material: PVC YM3 Conductor: Cl.1 1 Or Cl.2 Aluminum Stranded
Insulation: PVC DIV 4 Standard: DIN VDE 0271 And IEC 60502-1
Nominal Voltage Uo: 600 V Conductor Class: Class 1, From 25 Sqmm Class 2

NYRGY-J Low Voltage Cable PVC Inuslated Multicore Steel Wire Armored Cable



APPLICATION

For indoor and outdoor installation, in open air, in the ground, for power stations, industry and distribution boards or subscriber networks, where additional protection against mechanical damage is required and in the case of increased tensile forces during installation, laying and operation.

The cables are insensitive to occasional impacts of oils and fuels.



Type Designation Codes

N cables acc. to standard
(N) cables based on standard
Y insulation made of polyvinyl chloride (PVC)
RG Round steel wire armouring SWA, counter helix
Y outer sheath made of polyvinyl chloride (PVC)
J cable with green-yellow core
O cable without green-yellow core
RE circular conductor, solid
RM circular conductor, stranded
SM sector-shaped conductor, stranded





CONSTRUCTION

Conductor material: bare copper

Conductor class: class 1, from 25 sqmm class 2

Insulation: PVC DIV 4

Material inner sheath: PVC

Armour: round steel wire, galvanized

Sheathing material: PVC YM3

Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2

UV-resistant: yes

Maximum permitted conductor temperature: 70 °C

Permitted outer cable temperature, fixed: -5 - +70 °C

Nominal voltage Uo: 600 V

Nominal voltage U: 1 kV



DIMENSIONS



Product Size Cu No.
kg/km
Outer ∅
approx.
mm
Net weight
approx.
kg/km
Rated short-time current
kA
Max. tensile force
daN
Bending radius one-off
min. mm
Bending radius repeated
min. mm
NYRGY-J  3x1,5 RE   43 14 350 0.17 155 120 160
NYRGY-J  3x2,5 RE   72 14 400 0.29 175 130 170
NYRGY-J  3x4 RE   115 16 520 0.46 226 150 200
NYRGY-J  3x6 RE   173 17 630 0.69 258 160 210
NYRGY-J  3x10 RE   288 19 810 1.15 313 170 230
NYRGY-J  3x16 RE   461 22 1050 1.84 384 190 250
NYRGY-J  4x1,5 RE   58 14 380 0.17 173 130 170
NYRGY-J  4x2,5 RE   96 15 450 0.29 196 140 180
NYRGY-J  4x4 RE   154 17 610 0.46 258 160 210
NYRGY-J  4x6 RE   230 19 730 0.69 296 170 220
NYRGY-J  4x10 RE   384 20 950 1.15 362 190 250
NYRGY-J  4x16 RE   614 24 1470 1.84 514 220 290
NYRGY-J  4x25 RM   960 30 2220 2.88 778 270 360
NYRGY-J  4x35 SM   1344 32 2720 4.03 878 290 380
NYRGY-J  4x50 SM   1920 36 3600 5.75 1160 330 440
NYRGY-J  4x70 SM   2688 41 4770 8.05 1475 370 490
NYRGY-J  4x95 SM   3648 47 6200 10.93 1834 410 550
NYRGY-J  4x120 SM   4608 51 7400 13.8 2174 450 590
NYRGY-J  4x150 SM   5760 54 8865 17.25 2649 490 660
NYRGY-J  5x6 RE   306 20 840 0.69 340 180 240
NYRGY-J  5x10 RE   480 24 1320 1.15 490 220 290
NYRGY-J  7x1,5 RE   101 16 500 0.17 220 150 190
NYRGY-J  7x2,5 RE   168 17 620 0.29 253 160 210
NYRGY-J  10x1,5 RE   144 19 660 0.17 313 170 230
NYRGY-J  12x1,5 RE   173 20 710 0.17 329 180 230
