Filler: | Epdm Rubber Or Polyester Tape | Conductor: | Cl.1 1 Or Cl.2 Aluminum Stranded |
---|---|---|---|
Insulation: | XLPE | Permitted Outer Cable Temperature: | -20 - +70 °C |
Sheath Color: | Black | Direct Burial: | Yes |

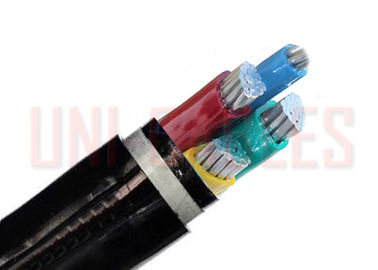

NA2X2Y Low Voltage Cable XLPE Insulation PE Sheath Sector-shaped Aluminum Cable
APPLICATION
For fixed installation in interiors, outdoor installation, in soil, in water and concrete, if no posterior mechanical damage is to be expected. Installation of the product should only be carried out by personnel trained and qualified for electrical works. The product is designed according to recognized standards. Applicable rules of installation must be applied at all times.
CONSTRUCTION
1 - Conductor: stranded aluminium wires (round and sector shaped), with or without signal/control copper conductor
2 - Insulation: XLPE DIX 3 correspond to HD 603-1.
3 - Filler: Epdm rubber or polyester tape
4 - Sheathing material: HDPE DMP 2 to HD 603-1.
Standard | VDE 0276-603 |
Direct burial | yes |
VDE | yes |
Conductor material | aluminium |
Conductor class | class 2 = stranded |
Insulation | XLPE |
Sheathing material | polyethylene |
Colour outer sheath | black |
Flame-retardant | no |
UV-resistant | yes |
For outdoor use | yes |
Maximum permitted conductor temperature | 90 °C |
Permitted outer cable temperature, fixed | -20 - +70 °C |
Bending radius, fixed installation | 15 x DA |
DIMENSIONS
Type | No. of cores x nom. cross section |
Max. conductor resistance |
Current rating in the ground |
Current rating in the air |
Outer diameter |
AL- number |
Total weight |
mm² | Ohm/km | A | A | mm | kg/km | kg/km | |
NA2X2Y | 4 × 25 RE | 1,200 | 112 | 92 | 25,5 | 290 | 730 |
NA2X2Y | 4 × 25 RM | 1,200 | 112 | 92 | 26,7 | 290 | 748 |
NA2X2Y | 4 × 35 RE | 0,868 | 135 | 112 | 27,8 | 406 | 882 |
NA2X2Y | 4 × 35 RM | 0,868 | 135 | 112 | 29,3 | 406 | 939 |
NA2X2Y | 4 × 50 SE | 0,641 | 158 | 133 | 31,9 | 580 | 910 |
NA2X2Y | 4 × 50 SM | 0,641 | 158 | 133 | 34,4 | 580 | 1.006 |
NA2X2Y | 4 × 70 SE | 0,443 | 196 | 169 | 36,1 | 812 | 1.276 |
NA2X2Y | 4 × 70 SM | 0,443 | 196 | 169 | 38,0 | 812 | 1.335 |
NA2X2Y | 4 × 95 SE | 0,320 | 234 | 205 | 40,3 | 1.102 | 1.631 |
NA2X2Y | 4 × 95 SM | 0,320 | 234 | 205 | 43,0 | 1.102 | 1.684 |
NA2X2Y | 4 × 120 SE | 0,253 | 268 | 239 | 43,5 | 1.392 | 1.944 |
NA2X2Y | 4 × 120 SM | 0,253 | 268 | 239 | 46,6 | 1.392 | 2.035 |
NA2X2Y | 4 × 150 SE | 0,206 | 300 | 271 | 47,7 | 1.74 | 2.432 |
NA2X2Y | 4 x 150 SM | 0,206 | 300 | 271 | 50,4 | 1.74 | 2.573 |
NA2X2Y | 4 × 185 SE | 0,164 | 342 | 314 | 52,7 | 2.146 | 3.099 |
NA2X2Y | 4 × 185 SM | 0,164 | 342 | 314 | 57,0 | 2.146 | 3.254 |
NA2X2Y | 4 × 240 SE | 0,125 | 398 | 372 | 58,2 | 2.784 | 3.863 |
NA2X2Y | 4 × 240 SM | 0,125 | 398 | 372 | 63,2 | 2.784 | 4.044 |
