Standard: | VDE 0276-603 | Conductor: | Cl.1 1 Or Cl.2 Copper Stranded |
---|---|---|---|
Core Identification: | Acc. To DIN VDE 0293 | Sheathing Material: | PVC DMV 5 |
Core Stranding: | To Layers | Nominal Voltage U0/U: | 0,6/1,0kV |

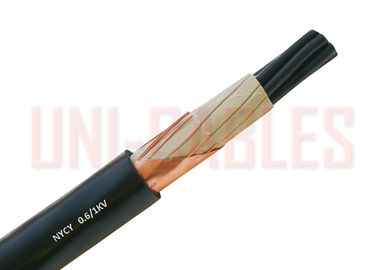

NYCY Low Voltage Cable With Corrugated Concentric Protective Cu Conductor
APPLICATION
The NYCY cable is a European power cable insulated, bound and sheathed in Polyvinyl Chloride (PVC). It is suitable for use as a fixed wiring cable in installations with a voltage rating of 600/1000V, both indoors and outdoors, in cable ducts, plaster, brickwork and in the ground. It is used for power plants, industrial plants, and in local power networks, particularly if increased mechanical and electrical protection is required.
CONSTRUCTION
Construction Conductor: copper, bare, single- or multi-wired
Core insulation: PVC
Core identification: acc. to DIN VDE 0293
Core stranding: to layers
Screen: concentric, consisting of bare copper wires, wave form, with counter helix consisting of copper tape
Sheath: PVC
Colour: black
Electrical characteristics
Nominal voltage U0/U: 0,6/1,0kV
Test voltage online 4,0kV
Thermal & mechanical properties
Temperature range -30°C to +70°C
Minimum bending radius stationary 12x diameter
Conductor types (acc. to DIN VDE 0295)
re round, solid conductor
rm round, stranded conductor
se sector-shaped conductor, solid
sm sector-shaped conductor, stranded
DIMENSIONS
Number of cores x conductor cross-section | Construction | Conductor diameter | External diameter | Insulation thickness | Sheath thickness | Short circuit current 1s | Cu weight | Cable weight |
nominal | min-max. | nominal | nominal | nominal | approx. | |||
N x mm² | mm | mm | mm | mm | kA | kg/km | Kg/km | |
Power NYCY | ||||||||
2 x 1,5/1,5 | RE | 1,5 | 12,0 - 13,0 | 0,8 | 1,8 | 0,173 | 52 | 200 |
2 x 2,5/2,5 | RE | 1,9 | 13,3 - 14 | 0,8 | 1,8 | 0,288 | 80 | 260 |
2 x 4/4 | RE | 2,4 | 15,3 - 16,0 | 1 | 1,8 | 0,46 | 123 | 350 |
2 x 6/6 | RE | 2,9 | 16,1 - 17,5 | 1 | 1,8 | 0,69 | 182 | 430 |
2 x 10/10 | RE | 3,7 | 18,5 - 19,5 | 1 | 1,8 | 1,15 | 312 | 520 |
2 x 16/16 | RE | 4,6 | 20,5 | 1 | 1,8 | 1,84 | 489 | 720 |
3 x 1,5/1,5 | RE | 1,5 | 13 - 17 | 0,8 | 1,8 | 0,173 | 66 | 220 |
3 x 2,5/2,5 | RE | 1,9 | 14 - 17 | 0,8 | 1,8 | 0,288 | 104 | 280 |
3 x 4/4 | RE | 2,4 | 15 - 18 | 1 | 1,8 | 0,46 | 161 | 390 |
3 x 6/6 | RE | 2,9 | 16 - 20 | 1 | 1,8 | 0,69 | 240 | 500 |
3 x 10/10 | RE | 3,7 | 18 - 22 | 1 | 1,8 | 1,15 | 408 | 680 |
3 x 16/16 | RE | 4,6 | 16 - 24 | 1 | 1,8 | 1,84 | 643 | 1010 |
4 x 1,5/1,5 | RE | 1,5 | 14 - 18 | 0,8 | 1,8 | 0,173 | 81 | 250 |
4 x 2,5/2,5 | RE | 1,9 | 15 - 19 | 0,8 | 1,8 | 0,288 | 128 | 340 |
4 x 4/4 | RE | 2,4 | 16 - 20 | 1 | 1,8 | 0,46 | 200 | 460 |
4 x 6/6 | RE | 2,9 | 17 - 21 | 1 | 1,8 | 0,69 | 297 | 580 |
4 x 10/10 | RE | 3,7 | 19 - 23 | 1 | 1,8 | 1,15 | 504 | 765 |
4 x 16/16 | RE | 4,6 | 21 - 25 | 1 | 1,8 | 1,84 | 796 | 1060 |
5 x 1,5/1,5 | RE | 1,5 | 15 - 16 | 0,8 | 1,8 | 0,173 | 95 | 330 |
5 x 2,5/2,5 | RE | 1,9 | 16 - 17 | 0,8 | 1,8 | 0,288 | 152 | 400 |
5 x 4/4 | RE | 2,4 | 19 | 1 | 1,8 | 0,46 | 238 | 550 |
5 x 6/6 | RE | 2,9 | 20 - 22 | 1 | 1,8 | 0,69 | 355 | 700 |
5 x 10/10 | RE | 3,7 | 22,5 | 1 | 1,8 | 1,15 | 600 | 1000 |
