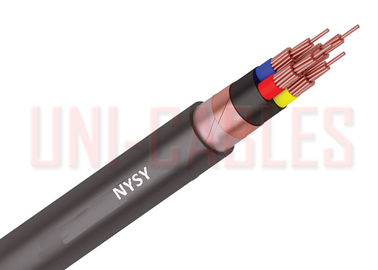

NYSY Class 1 Low Voltage Cable PVC Insulated Copper Tape Screen For Sub Station

: Large Image : NYSY Class 1 Low Voltage Cable PVC Insulated Copper Tape Screen For Sub Station

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	NYSY

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	Negotiable
Packaging Details:	200M in Steel Reels
Delivery Time:	15-20 working days
Supply Ability:	7000 Meters per Week

Contact Now

Detailed Product Description

Concentric Conductor:	Cu	Conductor:	Cl.1 1 Or Cl.2 Copper Stranded
Sheath Color:	Black	Meter Mark:	Yes
Insulation:	PVC DIV 4	Fixed Installation:	15 X DA

NYSY Low Voltage Cable 0.6/1KV PVC Insulated Copper Tape Screen Power Cable

APPLICATION

For power plants and switchgear as well as for installation of sub-station; for installation indoors in confinned spaces and cable channels because of small bending radius. As burried cable, because of its light weight prefered in where installation is difficult.

CONSTRUCTION

Conductor material: bare copper

Conductor class: class 1, from 25 sqmm class 2

Insulation: PVC DIV 4

Concentric conductor: Cu

Sheathing material: PVC DMV 5

Colour outer sheath: black

Meter mark: yes

Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2

UV-resistant: yes Maximum permitted conductor temperature: 70 °C

Permitted outer cable temperature, fixed: 70 °C

Permitted outer cable temperature, in motion/ during installation: -5 - +70 °C

Bending radius, fixed installation: 15 x DA

Nominal voltage Uo: 600 V

Nominal voltage U: 1 kV Maximum permitted operating voltage in threephase systems: 1,2 kV

Test voltage: 4 kV

DIMENSIONS

part name		Conductor resistance [Ω/km]	Ampacity in air (30 °C) [A]	Ampacity in ground (20 °C) [A]	Short-circuit current [kA]	Specific inductivity [mH/km]	Outer diameter approx. [mm]	Tensile strength [N]	Copper weight [kg/km]	weight [kg/km]
(N)YSY 01X185/25	RMv	00,991	406	413	213	0,287	265	9250	2059	2277
(N)YSY 01X240/35	RMv	00,754	483	479	276	0,281		12000	2708	3020
(N)YSY 01X300/25	RMv	00,601	557	541	345	0,279	318	15000	3163	3420
(N)YSY 01X400/35	RMv	0,047	646	614	412	0,275	37	20000	4353	4553
