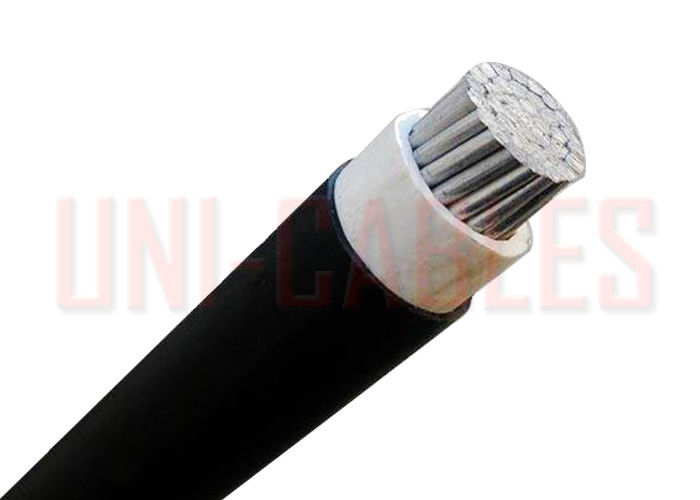

NA2XY Low Voltage Cable XLPE Insulation PVC Sheath Shaped Aluminum Power Cable



APPLICATION

For fixed installation indoors, outdoors, in the ground, in water and in conrete.

Power distribution cables in power stations, industrial installation and switchgears, as well as in local mains.
For fixed installation underground, in interior premises, cable ducts, in the open air and in water – as permitted by the local building regulations – if no risk of any mechanical damage is to be expected.





CONSTRUCTION

1 Aluminium conductor, round solid (RE), sector-shaped solid (SE), round stranded (RM), resp. sector-shaped (SM)
2 Core insulation (XLPE)
3 Inner covering (EPDM)
4 Sheath (PVC black, UV-resistant)






Technical Data

Rated voltage: kV 0,6/1
Test voltage: kVeff 4.000
Laying temperature: °C min. -5
Operating temperature: °C -50 up to +90
Conductor temperature: °C max. +90
Short-circuit temperature: °C/s max. +250/5
Core identifikation:   HD 308 S2 (VDE 0293)
Bending radius (mind.) mm 12 × Ø of cable
Certificate:   VDE, EZU Tschechien
Flame retardant:   acc. to EN 60332- 1-2



DIMENSIONS

Number of cores, nominal cross cectional area
mm²
Conductor shape Maximum resistance of conductor at 20oC Overall diameter Rated current­ carrying capacity in earth Rated current­ carrying capacity in air Total net weight
Number x mm²   Ω/km mm A A kg/km
1x16 RM 1.91 11.5 ­ ­ 145
1x25 RM 1.20 12.8 177 136 196
1x35 RM 0.868 13.7 212 166 250
1x50 RM 0.641 15 252 205 290
1x70 RM 0.443 17 310 260 393
1x95 RM 0.320 19 372 321 510
1x120 RM 0.253 20.2 425 376 601
1x150 RM 0.206 22.1 476 431 712
1x185 RM 0.164 25 541 501 884
1x240 RM 0.125 28 631 600 1100
1x300 RM 0.100 30.4 716 696 1440
1x400 RM 0.0778 34 825 821 1812
4x16 RM 1.91 21 ­ ­ 638

4x25 RM 1.20 26 112 102 923
4x35 RM 0.868 28 135 126 745
4x35 SM 0.868 26 135 126 710
4x50 SM 0.641 29 158 149 903
4x70 SM 0.443 33 196 191 1207
4x95 SM 0.320 38 234 234 1587
4x120 SM 0.253 42 268 273 1938
4x150 SM 0.206 46 300 311 2354
4x185 SM 0.164 51 342 360 2998
4x240 SM 0.125 56 398 427 3745
4x16+1.5 RM+RE 1.91/12.1 22 ­ ­ 650
4x25+1.5 RM+RE 1.20/12.1 21 112 102 940
4x35+1.5 RM+RE 0.868/12.1 26 135 126 760
4x35+1.5 SM+RE 0.868/12.1 28 135 126 732
4x50+1.5 SM+RE 0.641/12.1 26 158 149 920
4x70+1.5 SM+RE 0.443/12.1 29 196 191 1220
4x95+1.5 SM+RE 0.320/12.1 33 234 234 1603
4x120+1.5 SM+RE 0.253/12.1 38 268 273 1954
4x150+1.5 SM+RE 0.206/12.1 42 300 311 2371
4x185+1.5 SM+RE 0.164/12.1 46 342 360 3014
4x240+1.5 SM+RE 0.125/12.1 51 398 427 3763
