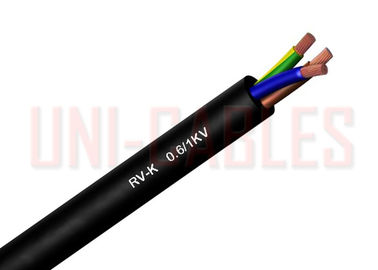

XLPE RV-K Insulated Low Voltage Cable , Indoor Outdoor Power Distribution Cable

: Large Image : XLPE RV-K Insulated Low Voltage Cable , Indoor Outdoor Power Distribution Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	RV-K

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	Negotiable
Packaging Details:	200M in Steel Reels
Delivery Time:	15-20 working days
Supply Ability:	7000 Meters per Week

Contact Now

Detailed Product Description

Standard:	UNE 21123-2	Filler:	Wrapped Thermoplastic Tapes
Sheath:	Flexible PVC Type DMV-18	Sheathing Material:	PVC
Rated Voltage:	0.6 / 1 KV	Bend Radius:	5 X Cable Diameter

RV-K XLPE Insulated Low Voltage Indoors and Out Doors Power Distribution Cable

APPLICATION

RV-K is a series of very unique flexible installation cables. The cables are built as flexible installation cables manufactured of PVC. The cables are suited for all use in street lights, industry and building installations. They are very suitable for installations where a flexible connection is needed such as in a motor, generator and similar. The cables can be buried directly in the soil.

CONSTRUCTION

Conductor:Electrolytic annealed Cu, class 5 acc. to IEC 60228

Insulation:XLPE type DIX-3 acc. to HD 603

Filler:wrapped thermoplastic tapes

Sheath:Flexible PVC type DMV-18

Sheath colour: Black

Working temperature:Fixed installation: -40° C to +90° C

Rated voltage:0.6/1 kV

Bend radius:5 x cable diameter

DIMENSIONS

Size mm²	Overall Diameter mm	Weight Kg/km	Current rating 40°C	Current rating 25°C	Size mm²	Overall Diameter mm	Weight Kg/km	Current rating 40°C	Current rating 25°C
1 x 1.5	5.7	45	19	27	3 x 25	20.0	900	115	106
1 x 2.5	6.1	60	27	36	3 x 35	22.7	1225	143	129
1 x 4	6.7	75	37	46	3 x 50	24.9	1555	174	152
1 x 6	7.2	95	48	58	3 x 70	29.2	2170	223	187
1 x 10	8.2	140	67	78	3 x 95	32.5	2805	271	222
1 x 16	9.2	195	91	100	3 x 120	36.7	3560	314	253
1 x 25	10.8	285	122	125	3 x 150	40.6	4415	363	286
1 x 35	11.9	375	153	150	3 x 185	44.3	5340	414	320
1 x 50	13.5	515	188	185	3 x 240	50.8	7050	489	370
1 x 70	15.6	710	243	225	3 x 300	64.1	10705	565	418
1 x 95	17.4	920	298	260	4 G 1.5	9.9	140	20	23
1 x 120	19.4	1160	348	300	4 G 2.5	10.9	185	29	30
1 x 150	21.4	1435	404	340	4 G 4	12.2	255	38	38
1 x 185	23.3	1735	464	380	4 G 6	13.5	340	49	48
1 x 240	26.6	2290	552	445	4 G 10	15.8	525	68	64
1 x 300	30.2	2885	639	500	4 G 16	183	760	91	82
1 x 400	34.8	3920	748	590	4 x 25	22.4	1155	115	106
1 x 500	39.1	5015	860	670	4 x 35	25.1	1560	143	129
1 x 630	43.7	6585	990	790	4 x 50	27.5	2075	174	152
2 x 1.5	8.6	100	23	27	4 x 70	32.3	2900	223	187
2 x 2.5	9.4	130	32	36	4 x 95	35.6	3735	271	222
2 x 4	10.5	170	44	46	4 x 120	40.5	4770	314	253
2 x 6	11.6	220	57	58	4 x 150	44.5	5895	363	296
2 x 10	13.5	330	78	77	4 x 185	49.2	7190	414	320
2 x 16	15.5	465	104	100	4 x 240	56.4	9495	489	370
2 x 25	18.8	700	135	128	5 G 1.5	10.8	170	20	23
2 x 35	21.2	940	168	154	5 G 2.5	11.9	225	29	30
2 x 50	21.3	1160	204	183	5 G 4	13.4	310	38	38
2 x 70	24.7	1600	262	224	5 G 6	14.9	420	49	48
2 x 95	27.7	2075	320	265	5 G 10	17.5	645	88	64
2 x 120	31.3	2640	373	302	5 G 18	20.2	925	91	82
2 x 150	34.5	3255	430	342	5 G 25	24.6	1410	115	106
2 x 185	37.8	3950	493	383	5 G 35	27.8	1905	143	129
2 x 240	43.3	5220	583	442	5 G 50	32.5	2670	174	152
3 G 1.5	9.0	115	23	27	5 G 70	39.6	4075	223	187
3 G 2.5	9.9	155	32	36	5 G 95	44.6	5320	271	222
3 G 4	11.1	205	44	46	5 G 120	50.4	6765	314	253
3 G 6	12.3	275	57	58	5 G 150	55.7	8380	383	288
3 G 10	14.3	415	78	77	7G 1.5	11.8	210	-	-
3 G 16	16.5	600	104	100	7G 2.5	13.0	285	-	-
