IEC 60502 - 1 Single Core Low Voltage Cable 600 / 1000V PVC Insulated CU PVC

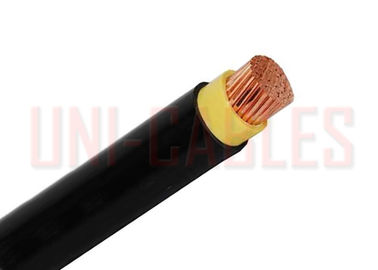

: Large Image : IEC 60502 - 1 Single Core Low Voltage Cable 600 / 1000V PVC Insulated CU PVC

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	CU/PVC/PVC

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	Negotiable
Packaging Details:	200M in Steel Reels
Delivery Time:	15-20 working days
Supply Ability:	7000 Meters per Week

Contact Now

Detailed Product Description

Conductor:	Class 1 Copper	Standard:	IEC60502-1
Armour:	Aluminum / Galvanized	Sheathing Material:	PVC
Insulation:	PVC	Voltage:	600/1000V

IEC 60502-1 Cables Single Core 600/1000V PVC Insulated Cables CU/PVC/PVC

APPLICATION

IEC60502-1 cables are used for electricity supply in low voltage installation system, IEC 60502-1 cables are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

CONSTRUCTION:

Conductors:

Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor,

Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation:

PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.

PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Colour Code (1)
1 Core	Red or Black
2 Cores	Red, Black
3 Cores	Red, Yellow, Blue
4 Cores	Red, Yellow, Blue, Black
5 Cores	Red, Yellow, Blue, Black, Green
Above 5 Cores	Black Cores with White numerals
Colour Code (2)
1 Core	Brown or Blue
2 Cores	Brown or Blue
3 Cores	Brown, Black, Grey
4 Cores	Blue, Brown, Black, Grey
5 Cores	Green/Yellow, Blue, Brown, Black, Gre

Assembly /	Two, Three or Four insulated conductors are laid-up together with non-hygroscopic
Inner Sheath	fillers and the assembly is bedded with an extruded layer of PVC. In case of non armoured cables, this layer may be omitted

Armour	Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.



Outer Sheath	Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.





Fire Performance of Cable Sheaths	Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

DIMENSIONS

Nominal Cross	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter
Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	(Approx.)
mm2	mm	mm	mm	mm
1x4	2.3	1	1.4	7.1
1x6	2.8	1	1.4	7.6
1x10	3.6	1	1.4	8.4
1x16	4.5	1	1.4	9.3
1x25	5.6	1.2	1.4	10.8
1x35	6.7	1.2	1.4	11.9
1x50	8	1.4	1.4	13.6
1x70	9.4	1.4	1.4	15.1
1x95	11	1.6	1.5	17.2
1x120	12.4	1.6	1.5	18.7
1x150	13.8	1.8	1.6	20.6
1x185	15.3	2	1.7	22.7
1x240	17.5	2.2	1.8	25.4
1x300	19.5	2.4	1.9	28
1x400	22.6	2.6	2	31.7
1x500	25.2	2.8	2.1	35
1x630	28.3	2.8	2.2	38.3
