Class 1 IEC 60502 - 1 Standard Low Voltage Cable Three Cores PVC Copper Construction None Armored

Certification
Good quality Medium Voltage Cable for sales
Good quality Medium Voltage Cable for sales
I'm Online Chat Now

Class 1 IEC 60502 - 1 Standard Low Voltage Cable Three Cores PVC Copper Construction None Armored

China Class 1 IEC 60502 - 1 Standard Low Voltage Cable Three Cores PVC Copper Construction None Armored supplier

Large Image :  Class 1 IEC 60502 - 1 Standard Low Voltage Cable Three Cores PVC Copper Construction None Armored

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: CU/PVC/PVC

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Price: Negotiable
Packaging Details: 200M in Steel Reels
Delivery Time: 15-20 working days
Supply Ability: 7000 Meters per Week
Contact Now
Detailed Product Description
Standard: IEC60502-1 Characteristic: Flame Retardant
Insulation: PVC Application: Indoor Outdoor
Core: 1-5 Voltage: 600/1000V

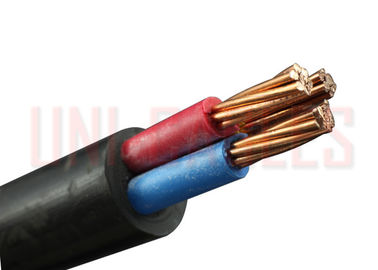

IEC 60502-1 Standard Three Cores Low Voltage Construction Cable None Armored



APPLICATION

IEC60502-1 cables are used for electricity supply in low voltage installation system, IEC 60502-1 cables are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.





CONSTRUCTION:

Conductors:

Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor,

Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation:

PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.

PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.



Colour Code (1)
1 Core Red or Black
2 Cores Red, Black
3 Cores Red, Yellow, Blue
4 Cores Red, Yellow, Blue, Black
5 Cores Red, Yellow, Blue, Black, Green
Above 5 Cores Black Cores with White numerals
Colour Code (2)
1 Core Brown or Blue
2 Cores Brown or Blue
3 Cores Brown, Black, Grey
4 Cores Blue, Brown, Black, Grey
5 Cores Green/Yellow, Blue, Brown, Black, Gre





Assembly / Two, Three or Four insulated conductors are laid-up together with non-hygroscopic
Inner Sheath fillers and the assembly is bedded with an extruded layer of PVC. In case of non
armoured cables, this layer may be omitted
Armour Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC
60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire
armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables
as per IEC 60502.
Outer
Sheath
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as
BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite
PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on
special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE,
LSF, CPE are available on request.
Fire
Performance
of Cable
Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with
the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24,
can also supply cables with Low Smoke Halogen Free (LSHF) material according to
IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.









DIMENSIONS

Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Sheath Thickness Overall Diameter (Approx.)
mm2 mm mm mm mm
3x1.5 1.4 0.8 1.8 10.1
3x2.5 1.8 0.8 1.8 10.9
3x4 2.3 1 1.8 12.9
3x6 2.8 1 1.8 13.9
3x10 3.6 1 1.8 15.7
3x16 4.5 1 1.8 17.6
3x25 5.6 1.2 1.8 20.8
3x35 6.7 1.2 1.8 23.2
3x50 8 1.4 1.8 26.9
3x70 9.4 1.4 1.9 30.1
3x95 11 1.6 2.1 34.7
3x120 12.4 1.6 2.2 38
3x150 13.8 1.8 2.3 42.1
3x185 15.3 2 2.5 46.5
3x240 17.5 2.2 2.7 52.5
3x300 19.5 2.4 2.8 58
3x400 22.6 2.6 3.1 66.1


Class 1 IEC 60502 - 1 Standard Low Voltage Cable Three Cores PVC Copper Construction None Armored

Contact Details
Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.

Contact Person: achi

Send your inquiry directly to us (0 / 3000)
