Detailed Product Description

Binding Tape:	Polyester Tape	Conductor:	Class 1 Copper
Maximum Conductor Temperature:	70℃	Sheathing Material:	PVC
Sheath Color:	Black	Voltage:	600/1000V

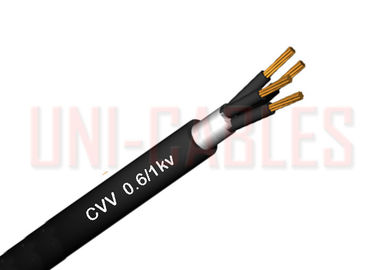

Type CVV JIS Standard PVC Insulated Cable for Supervisory Electrical Equipment

APPLICATION

CVV cables are used for supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

Reference Standard:

IEC 60502-1

Cable Construction:

Conductor: Stranded annealed copper wires,

Sizes: 0.5 mm2 up to 6 mm2

Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,

More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)

Sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant sheath can be supplied)

Technical Characteristics:

Maximum conductor temperature 70^oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts

Type CVV JIS Standard PVC Insulated Cable for Supervisory Electrical Equipment

Cable Parameter

NO. OF CORES	CONDUCTOR			THICKNESS OF INSULATION	THICKNESS OF SHEATH	OVERALL DIAMETER	MAXIMUM CONDUCTOR RESISTANCE (AT 20^oC)	MINIMUM INSULATION RESISTANCE (AT 70^oC)	CABLE WEIGHT
	NOMINAL CROSS- SECTIONAL AREA	NO.& DIA. OF WIRES	DIAMETER
	NOMINAL CROSS- SECTIONAL AREA	NO.& DIA. OF WIRES	DIAMETER
	MM2	MM	MM	MM	MM	MM	OHM/KM	OHM/KM	KG/KM
2	0.5	7/0.30	0.9	0.8	1.8	9.5	36	0.0162	100
	0.75	7/0.37	1.11	0.8	1.8	10	24.5	0.0142	110
	1	7/0.43	1.29	0.8	1.8	10.5	18.1	0.0128	120
	1.5	7/0.52	1.56	0.8	1.8	11	12.1	0.0112	140
	2.5	7/0.67	2.01	0.8	1.8	12	7.41	0.0093	180
	4	7/0.85	2.55	1	1.8	14	4.61	0.0092	250
	6	7/1.04	3.12	1	1.8	15.5	3.08	0.0078	310
3	0.5	7/0.30	0.9	0.8	1.8	10	36	0.0162	110
	0.75	7/0.37	1.11	0.8	1.8	10.5	24.5	0.0142	130
	1	7/0.43	1.29	0.8	1.8	11	18.1	0.0128	140
	1.5	7/0.52	1.56	0.8	1.8	12	12.1	0.0112	170
	2.5	7/0.67	2.01	0.8	1.8	13	7.41	0.0093	210
	4	7/0.85	2.55	1	1.8	15	4.61	0.0092	310
	6	7/1.04	3.12	1	1.8	16	3.08	0.0078	390
4	0.5	7/0.30	0.9	0.8	1.8	11	36	0.0162	130
	0.75	7/0.37	1.11	0.8	1.8	11.5	24.5	0.0142	150
	1	7/0.43	1.29	0.8	1.8	12	18.1	0.0128	170
	1.5	7/0.52	1.56	0.8	1.8	12.5	12.1	0.0112	200
	2.5	7/0.67	2.01	0.8	1.8	14	7.41	0.0093	260
	4	7/0.85	2.55	1	1.8	16	4.61	0.0092	380
	6	7/1.04	3.12	1	1.8	17.5	3.08	0.0078	490
5	0.5	7/0.30	0.9	0.8	1.8	12	36	0.0162	150
	0.75	7/0.37	1.11	0.8	1.8	12.5	24.5	0.0142	180
	1	7/0.43	1.29	0.8	1.8	13	18.1	0.0128	200
	1.5	7/0.52	1.56	0.8	1.8	13.5	12.1	0.0112	240
	2.5	7/0.67	2.01	0.8	1.8	15	7.41	0.0093	320
	4	7/0.85	2.55	1	1.8	17.5	4.61	0.0092	470
	6	7/1.04	3.12	1	1.8	19	3.08	0.0078	600
